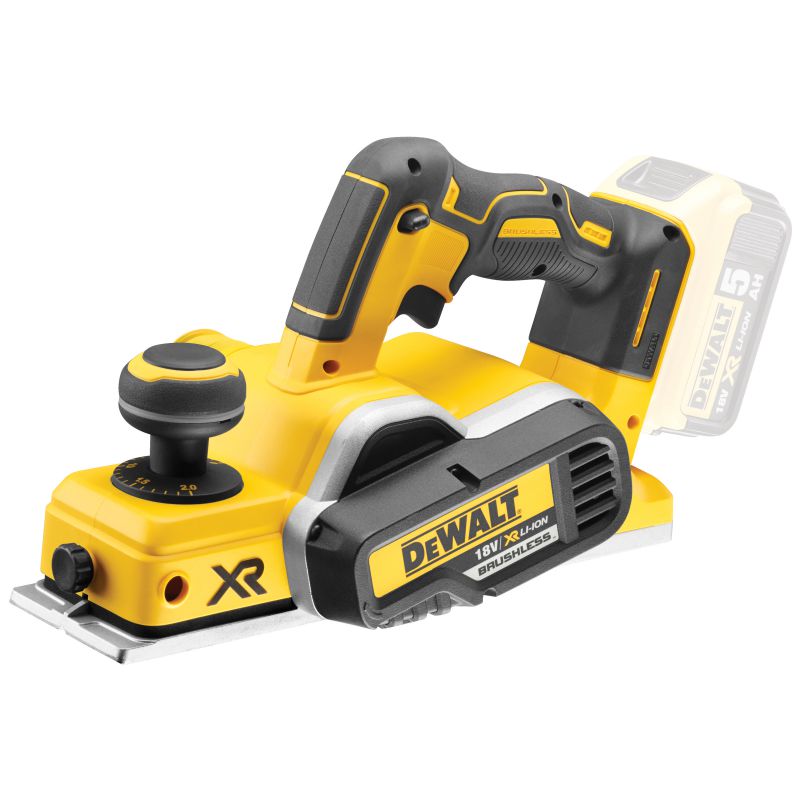

DeWalt DCP580N 18 Volt XR Li-Ion 82mm Brushless Planer Body Only

DeWalt DCP580N 18 Volt XR Li-Ion 82mm Brushless Planer Body Only

The DeWalt DCP580 is the world’s first 18v brushless, cordless planer. It's a compact and well balanced machine for both horizontal and vertical planing with twin 82mm reversible blades and the power to plane up to 2.0mm in soft wood or 1.0mm in hard wood. There's two 82mm tungsten carbide tipped reversible blades already attached and it has a discreet on-board blade storage area, with integrated torx key for quicker blade changes.

It has a DeWalt XR brushless motor which eliminates wasted energy, maximising the runtime and life of the tool. This innovative new technology pairs a highly efficient brushless motor with a high capacity XR battery, working in tandem to provide maximum output and best-in-class runtime. The DCP580 has enough runtime for a typical day’s work from just one charge of a DeWalt 18v 5Ah XR Li-ion battery, significantly reducing costly downtime and providing end-users with market-leading efficiency.

FEATURES

Brushless Motor - Increased power and runtime
Lightweight - only 3.1 Kg with battery, weighted towards the front of the trigger to reduce any physical strain during use
Soft grip handle offers end-users optimum comfort and manoeuvrability during a wide range of applications
On board blade storage and torx key - for quick and easy blade changes
2.0mm Depth of Cut - For large material removal
Fine indexed, accurate depth adjustment knob allows for maximum precision with 0.1mm increments
Front and rear shoe milled in situ - For increased accuracy
Part of the intelligent XR Lithium-Ion Series designed for efficiency and making applications faster
Air lock port - compatible with DeWalt Airlock dust extraction system or DWV9390-XJ Dust Bag
Foot lock off - stands the tool above the work surface
Market leading 9.00mm rebate capacity making it ideal for minor on-site alterations and fixes

SPECIFICATION

Battery Chemistry: XR Li-Ion
Voltage: 18v
No Load Speed: 15,000 rpm
Maximum Depth of Cut: 2.0 mm
Rebating Depth: 9.0 mm
Planer Width: 82 mm
Shoe Length: 295 mm
Drum Diameter: 48 mm
Weight: 2.5 kg
Length: 370 mm

NOISE & VIBRATION

Sound Pressure: 88 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Sound Power: 99 dB(A)
Sound Power Uncertainty: 3 dB(A)
Hand/Arm Vibration: <2.5 m/s2
Uncertainty K 1 (Vibration): 1.5 m/s²

Supplied As:

1x DCP580N-XJ Planer Body Only
2x Tungsten Carbide Tip Reversible Blades
1x Torx Key
1x Guide Fence
