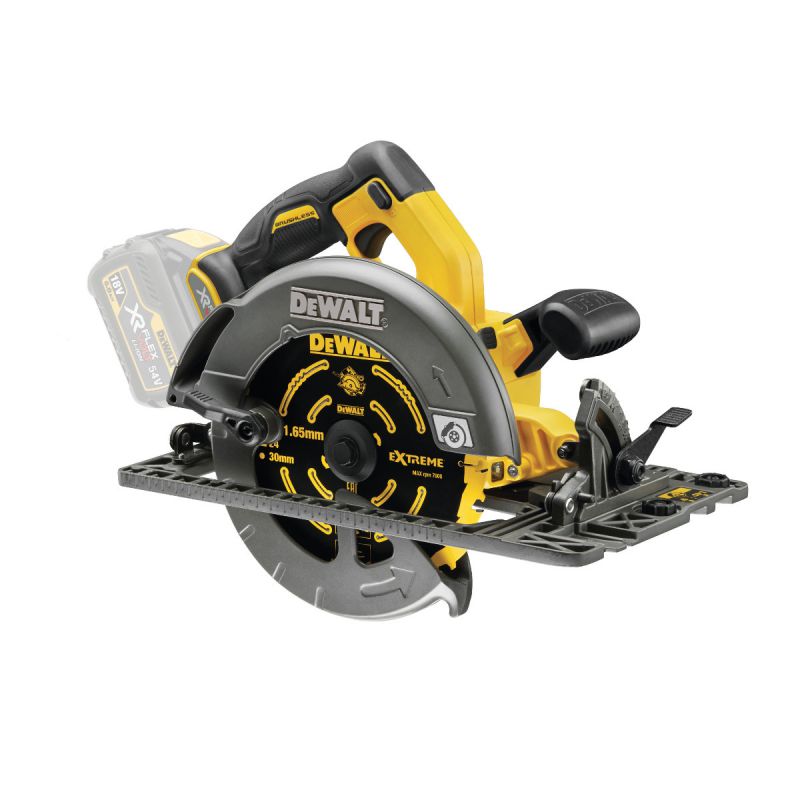

DeWalt DCS576N 54 Volt FlexVolt Cordless Brushless Circular Saw Body Only

The DeWalt DCS576 XR Flexvolt Circular Saw is ideal for general purpose ripping, cross-cutting and bevelling in wood and other construction materials. The high torque motor provides increased durability and power when cutting job site and joinery materials. It has a cast machine base suitable for use with the DeWalt guide rail system.

It has a stable block construction for low vibration running and long service life. With a scale for setting a precise cutting depth up to 67mm and variable adjustment of the bevel angle to 57°. There is also an additional handle for safe two-handed work.

FEATURES

Scale for precise cutting depth setting to 61 mm
General purpose ripping, cross-cutting and bevelling circular saw for wood and other construction materials
High torque motor for durability and power for cutting job site and joinery materials
Guide rail compatible for quick and easy use with the DeWalt guide rail system
Additional handle for safe two-handed work
Variable adjustment of the bevel angle to 57 degrees
Optimum balance for safe, fatigue-free operation

SPECIFICATION

Voltage: 54v
Battery Compatibility: XR FLEXVOLT 54v
No Load Speed: 5800 rpm
Blade Diameter: 190 mm
Blade Bore: 30 mm
Bevel Capacity: 57°
Max. Depth of Cut at 90º: 61 mm
Max. Depth of Cut at 90º (with Guide Rails): 57 mm
Max. Depth of Cut at 45º: 43 mm
Max. Depth of Cut at 45º (with Guide Rails): 39 mm
Length: 355 mm
Height: 245 mm
Weight: 3.7 kg

NOISE & VIBRATION

Sound Pressure: 92 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Sound Power: 103 dB(A)
Sound Power Uncertainty: 3 dB(A)
Hand/Arm Vibration: 2.5 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²

Supplied As:

1x DCS576 XR FLEXVOLT Circular Saw
1x Precision 24 Tooth Saw Blade
1x Rip Fence
1x Blade Spanner
1x Dust Extraction Spout
