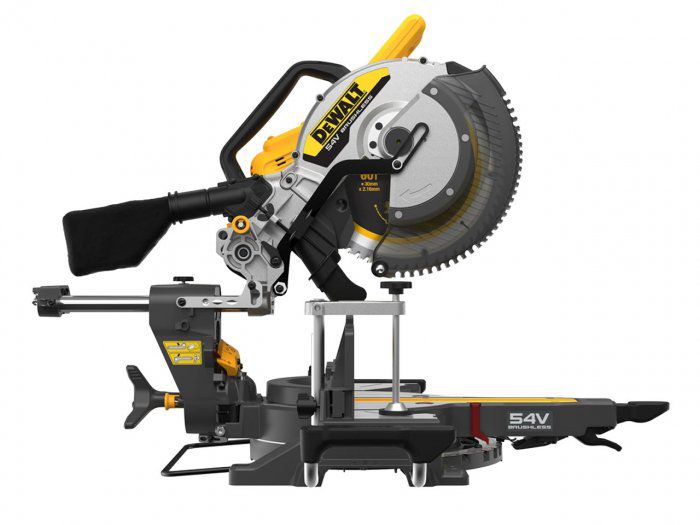

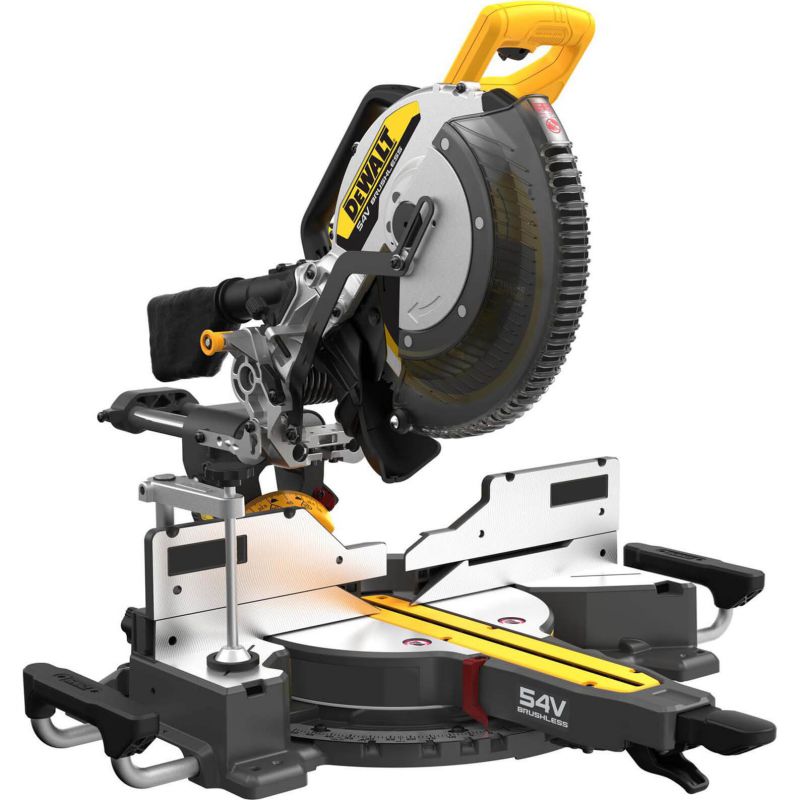

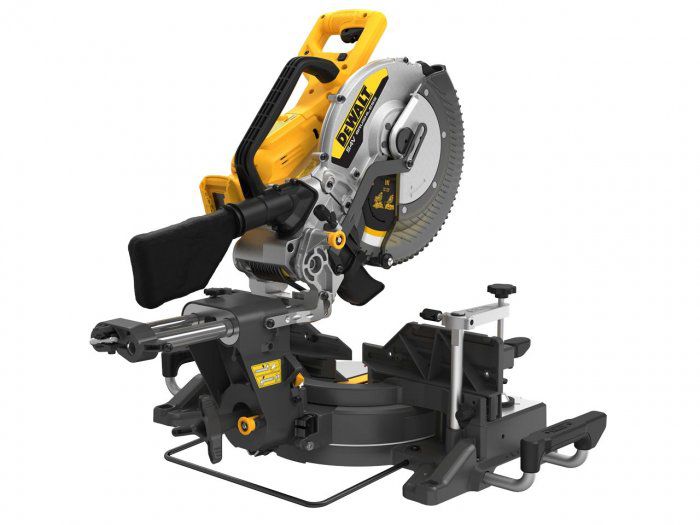

DeWalt DCS781N 54V XR Flexvolt 305mm Slide Mitre Saw Bare Unit

The DCS781 is the ultimate cordless Mitre Saw for first and second-fix applications on the job site and can deliver up to 675 cuts in an 83mm skirting board with one 9Ah XR FLEXVOLT® battery.nThe powerful 54V brushless motor offers a cutting capacity of 310 x 90mm, with a 165mm height capacity at the fence and the Regenerative Braking Technology extends runtime by redirecting lost energy back into the battery. Engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees.nOther features include Wireless Tool Control to enable automatic stop-start dust extraction when used with the DCV586M, XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and 100mm extendable side handles for material support and increased portability on site.

Unlike its older counterpart, the DHS780, this saw uses only one battery, not two. And is not compatible with the power adapter, to convert this unit into a corded machine.

Additional Features
Compact and lightweight design characteristics deliver a saw with application-focused capacities which is easy to transport around the job site

The large 120mm high dual sliding fence gives maximum support in large material cuts at any angle or combination of anglesOutstanding cutting performance in both small profiles and large construction timbers up to 90 x 310 mmCam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right intuitive bevel lock with machined stops provides the accurate and simple setting of bevel angles up to 49° left and right side extension handles improve portability and handling whilst providing a stable, base for wider materialThe innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications

Base and fence designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy in key applicationsExceptional runtime performance is achieved through a combination of blade, brushless motor design and regenerative braking technology

Includes
(1) 60T XR EXTREME RUNTIME 305mm Blade
(1) Stabilizer Bar
(2) Base Extensions
(1) Material Clamp

Specifications
Blade Speed
3800 rpm
Max. Depth of Cut [Metric]
165 mm
Blade Bore [Metric]
30 mm
Saw Blade Thickness [Metric]
2.16 mm
Product Width [Metric]
49.5 cm
Max. Cutting Capacity (90°/90°) [Metric]
310 x 90 mm
Product Height [Metric]
45 cm
Product Weight [Metric]
23.2 Kg
Max. Cutting Capacity (45°/90°) [Metric]
219 x 90 mm
Supplied in Storage Case Indicator
No
Blade Diameter [Metric]
305 mm
Max. Cutting Capacity (90°/45°) [Metric]
310 x 54 mm
Power Source
Cordless
Product Length [Metric]
77.5 cm
