Fein 12-60mm TCT Ultra 35 Core Bit 35mm 3/4in Weldon Holder

Fein 12-60mm TCT Ultra 35 Core Bit 35mm 3/4in Weldon Holder

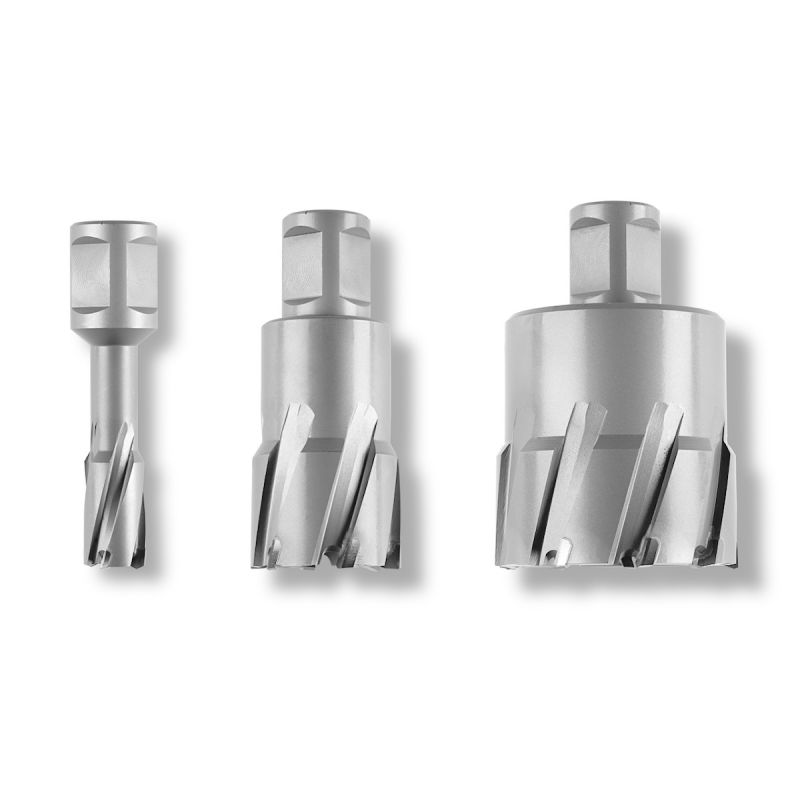

The Fein TCT Ultra 35 core bit is a carbide-tipped cutter designed for demanding continuous-use and serial drilling applications. Its highly wear-resistant construction offers heat resistance up to 800°C, while the 35 mm cutting depth and 3/4 in Weldon holder make it suitable for compatible Fein magnetic core drilling machines. Available in Ø 12–60 mm with a 35 mm cutting depth.

Technical Data

• Material: HM (Carbide-Tipped)
• Vickers Hardness: 1,450 HV
• Heat Resistance: Max. 800°C
• Bore Ø: 12-60 mm
• Drill Core Ø Approx.: 6-52 mm
• Number of Cutting Edges: 4-9
• Total Length: 74.5 mm
• Core Drill Holder: 3/4 in Weldon
• Inner Bore Ø: 6.35 mm
• Cutting Depth: 35 mm

Suitable for the following tools

Universal

• KBM 50 U (110 V)
• KBM 65 U (110 V)
• KBU 35 QW (110 V)
• KBU 35 MQW (110 V)
• KBU 35 PQW
• AKBU 35 PMQW AS

Endurance

• KBE 32
• KBE 32 (110 V)
• KBE 36 MAGSPEED (110 V)
• KBE 36 MAGSPEED

Compact

• KBC 36 MAGFORCE (230V)
• KBC 36 MAGFORCE (110V)
• AKBC 36 MAGFORCE
• AKBC 36 MAGFORCE Set 2 x 8 Ah
