Festool 18v 577224 Cordless percussion drill TPC 18/4 I-Basic GB

Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters

Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor

Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service

For an even wider range of applications: Axial impact function that can be activated for drilling into masonry

The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear

Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving

The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges

Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution. The 5.0 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications. Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs

Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site

Powerful. Versatile. With four gears for every application. With the best switching concept you have ever operated. Whether you are working on wood, metal or masonry – thanks to the axial impact feature that can be switched on: The TPC is extremely durable and, thanks to its brushless EC-TEC motor, has extreme resilience and endurance. The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled percussion drill for a wide range of possible uses. What about your hand twisting dangerously if the tool suddenly jams? Our intelligent KickbackStop minimises the risk of this happening. Give it a go: The best drill that Festool has ever built!

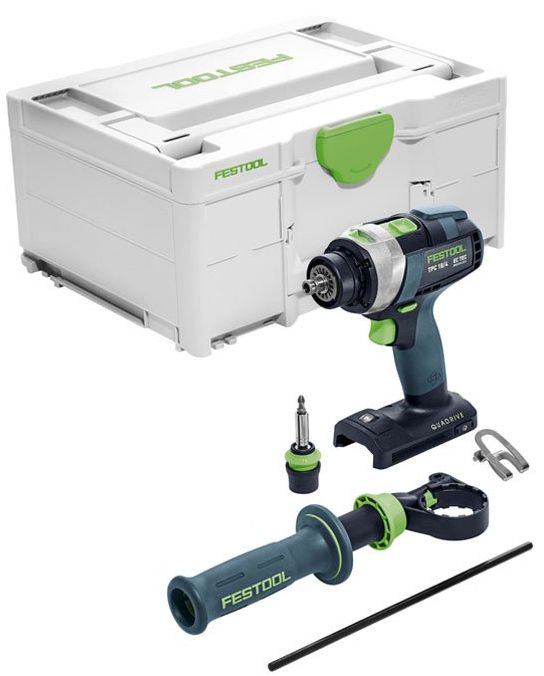

CENTROTEC tool chuck, CENTROTEC BH 60 CE Imp magnetic bit holder, FastFix keyless chuck 13 mm KC 13-1/2-MMFP, additional side-mounted hand grip, bit PZ 2, belt clip, Systainer SYS3 M 187

Product strengths
Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution. The 5.0 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications. Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
For an even wider range of applications: Axial impact function that can be activated for drilling into masonry
Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site
Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear
The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges
Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving
Technical data
Battery voltage
18 V
Gears
4
Idling speed, 1st gear/2nd gear
0 - 500/0 - 800 min⁻¹
Idling speed, 3rd/4th gear
0 - 2350/0 - 3600 min⁻¹
Max. number of strokes
57600 min⁻¹
Drilling diameter, wood/steel
70/13 mm
Drilling diameter in brickwork
10 mm
Torque adjustment 1st/2nd gear
2 - 20/2 - 20 Nm
Max. torque, wood/steel
50/75 Nm
Chuck range
1.5 - 13 mm
Drilling in metal: Total vibration average, Ah
3 m/s²
Drilling in metal: Standards series EN
62841
Drilling in metal: Uncertainty (noise) K
5 dB
Drilling in metal: Uncertainty (vibration) K
1.5 m/s²
Drilling in metal: A-weighted sound pressure level, LpA
73 dB(A)
Drilling in metal: A-weighted sound power level, LWA
84 dB(A)
Fastening: Total vibration average, Ah
2.5 m/s²
Fastening: Standards series EN
62841
Fastening: Uncertainty (noise) K
5 dB
Fastening: Uncertainty (vibration) K
1.5 m/s²
Fastening: A-weighted sound pressure level, LpA
73 dB(A)
Fastening: A-weighted sound power level, LWA
84 dB(A)
Drive type
Battery
Product weight
1.3 kg
Items included
CENTROTEC BH 60 CE Imp magnetic bit holder
CENTROTEC tool chuck
FastFix keyless chuck 13 mm KC 13-1/2-MMFP
Systainer SYS3 M 187
additional side-mounted hand grip
belt clip
bit PZ 2
Categories / Category assignments
TPC 18/4 cordless percussion drill
Logistic details
Weight
4.218 kg
Length
39.6 cm
Width
29.6 cm
Depth
13.7 cm
Areas of application
Drilling and screwdriving in wood, metal and plastic
Drilling in wood up to 70 mm with Forstner drill bits
Drilling with impact in brickwork or masonry
Drive screws into wood up to 10x300 mm
Installation of doors and windows
Production of wooden substructures, frame structures
