Festool 500175 AP-KA 65 MFT Table Adaptor Plate
Stock Ref:
FES500175
Temporarily Out of Stock
-
Features & Specification

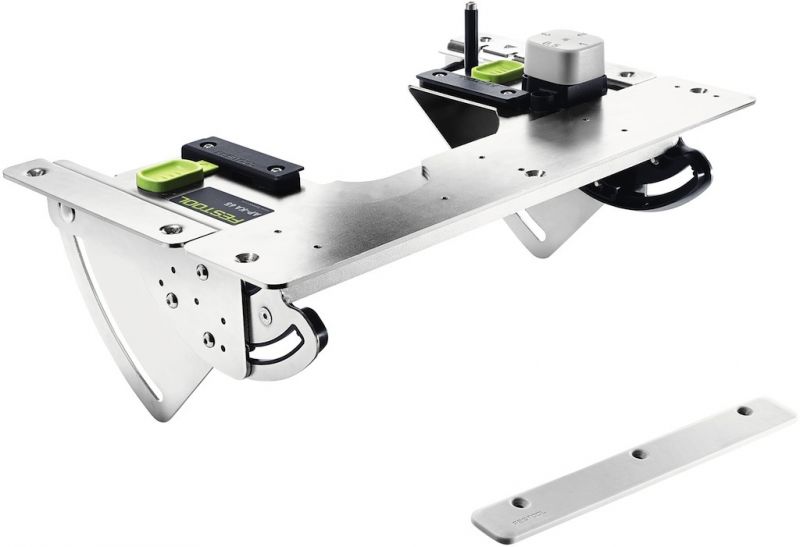

Festool 500175 AP-KA 65 MFT Table Adaptor Plate
Items include
- mounting plate for edge bander complete with 15 sliding guides
- additional roll
Functions
Swivel-mounted stationary edging
The CONTURO is also suitable for working when stationary. It is simply inserted via this adapter plate in the MFT/3 multifunction table or a bench you have built yourself. Not only can you affix edging to straight edges or curves, but also oblique edges with an angle between 90° and 45° because the CONTURO can be tilted 90°–45° in the stationary unit.
- Flexible in use, the adapter plate can be built into a self-built table frame or into the MFT perforated board provided for it
- Continuously adjustable angle of 0–47°
- Allows the user to swivel the machine in the bench and position the workpiece horizontally during edging – for convenient and safe guidance, even with larger objects
- Supplied sliding guides for guiding the workpiece safely
- Perfect edging overhang when using the supplied sliding guides
- Quick to install and remove the edge bander without tools
- Secure fixing of the machine with slide lock
- Additional roller as expansion of the pressure zone or for edging of complex shapes
- Adjustable guide rail adapter for exactly parallel feeding in of the panel when edging mitres, therefore the edge doesn't run off course
- Deflector that keeps the introduced edge away from the workpiece area
- Start button of the machine always ideally reachable
- for using the edge bander KA 65 as a bench-mounted machine
- adapter plate for installation in the MFT (with perforated board KA 65, order no. 500366) or a separate workbench
Product details
Always the right angle
The angle can be continuously adjusted between 0 and 47° using two clamping screws. Locking positions thereby help to quickly find the most important angles.
Perfect guidance
Thanks to the combination of sliding strip, adjustable guide rail adapter for exactly parallel feeding in of the panel and the additional roller, the workpiece is always guided cleanly and a perfect glued joint guaranteed.
Usage
Main applications
- For small series with straight edges
- Edging of small free form elements that are difficult to clamp
- Gluing inclined edges up to 47°
Technical Data
- Dimensions length x width 254 x 420 mm
- Min. installation height 150.00 mm
- Cutting angle adjustment 0 - 47 °
Brand: Festool
Category: Accessories
