Every year approximately 4,000 people are injured on circular saws. With the TKS 80 table saw, serious cutting injuries are drastically reduced. While you concentrate on your work, the integrated SawStop technology protects your most valuable tools – your fingers.
Key Features
- Improved safety: Responsive sensor stops the blade on contact with skin; can be deactivated if necessary.
- Flexible cutting: 80 mm cutting height, extendable work surface, stopper, and angle stop for large workpieces.
- Splinter-free cuts: Minimizes splintering in mitre rip cuts by swiveling blade left.
- Dust-free operation: CLEANTEC extraction sleeve provides a free view of the workpiece.
- Space-saving: Tool garage for blades, cartridges, and push sticks.
Main Applications
- Cross-cutting up to 820 mm width with sliding table (20 mm depth).
- Rip cutting up to 80 mm height and 600 mm width with extension table.
- Tilting saw blade for angled cuts -2° to 47°.
Product Details
- Integrated SawStop technology for maximum safety.
- Responsive sensor stops blade in 5 ms on skin contact.
- Intelligent cartridge releases spring to stop blade; easy replacement.
- Flexible cutting height up to 80 mm for larger cross cuts.
Technical Specifications
| Power Consumption | 2,200 W |
| Idle Engine Speed | 1,700 – 3,500 min⁻¹ |
| Saw Blade Diameter | 254 mm |
| Cutting Height 90°/45° | 80 / 56 mm |
| Inclination | -2 / 47 ° |
| Table Dimensions | 720 x 850 mm |
| Table Height (legs folded) | 385 mm |
| Table Height (legs unfolded) | 900 mm |
| Dust Extraction Connection | 27/36 mm |
| Weight | 48 kg |

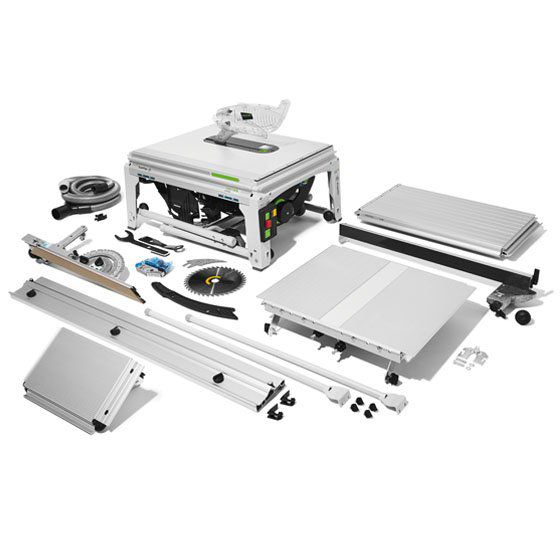

Supplied With
- 1 open ended spanner size 23
- 1 open ended spanner size 50
- Angle stop
- Cartridge
- Dust extraction set
- Extension table VB TKS 80
- Guide extension VL TKS 80
- Sliding Table ST TKS 80
- Hex key, WAF 5
- HW universal saw blade W40
- LA TKS 80 stopper
- 3 x SplinterGuard
- Workpiece holder
