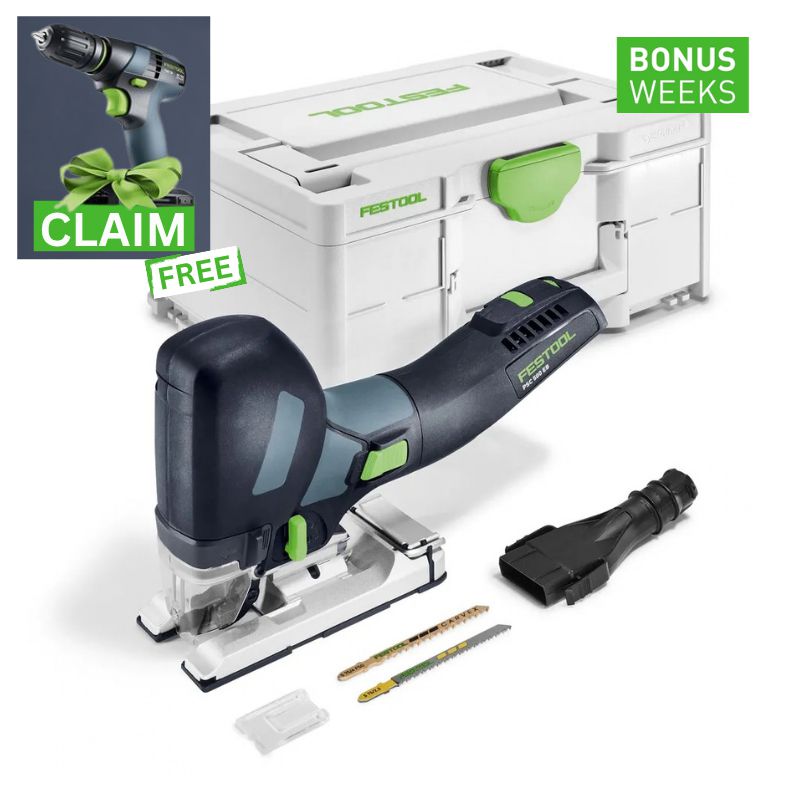

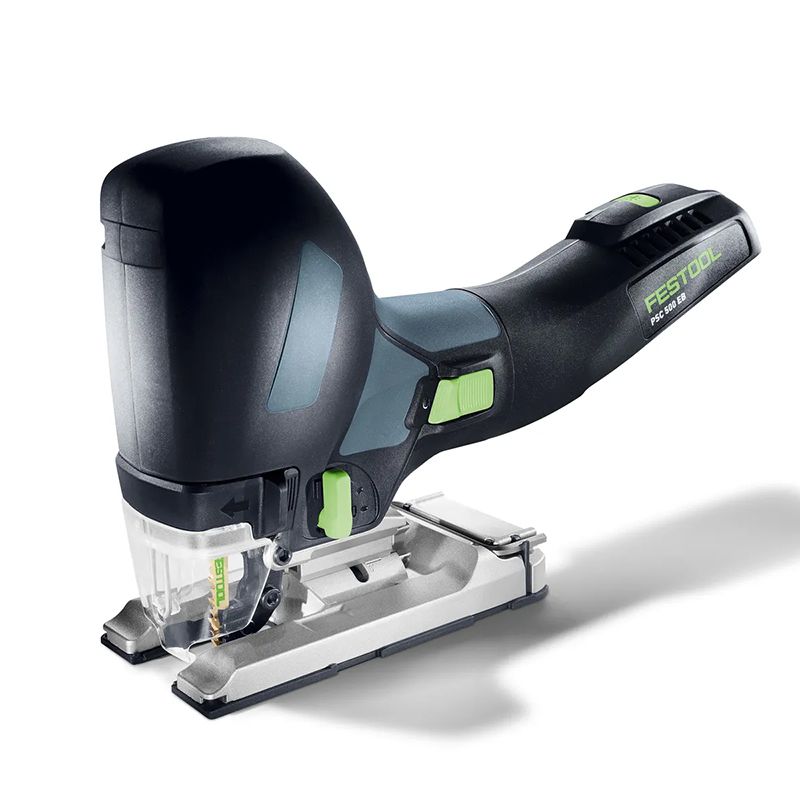

Festool PSC 500 EB-Basic Cordless Pendulum Jigsaw
Powerful, precise and versatile cordless sawing with a cutting depth of up to 120 mm.
18V • 120mm Cutting Depth • FastFixThe Festool PSC 500 EB-Basic cordless pendulum jigsaw combines powerful cutting performance with outstanding precision for demanding professional applications. With a cutting depth of up to 120 mm in wood, it is equally capable of tackling large solid-wood cross-sections, tight curves and accurate angled cuts.
Enhanced three-point saw blade guidance with guiding jaws helps produce precise, angle-true cuts, while the adjustable pendulum stroke and variable speed allow the machine to be adapted to the material and application. The FastFix system also enables quick, tool-free saw blade changes for efficient, uninterrupted working.
A switchable blowing function, deactivatable lighting and dust extraction help maintain a clear view of the cutting line. Bluetooth connectivity provides access to operating data, accessory information and compatible extractor control through the Festool app.
Key Features

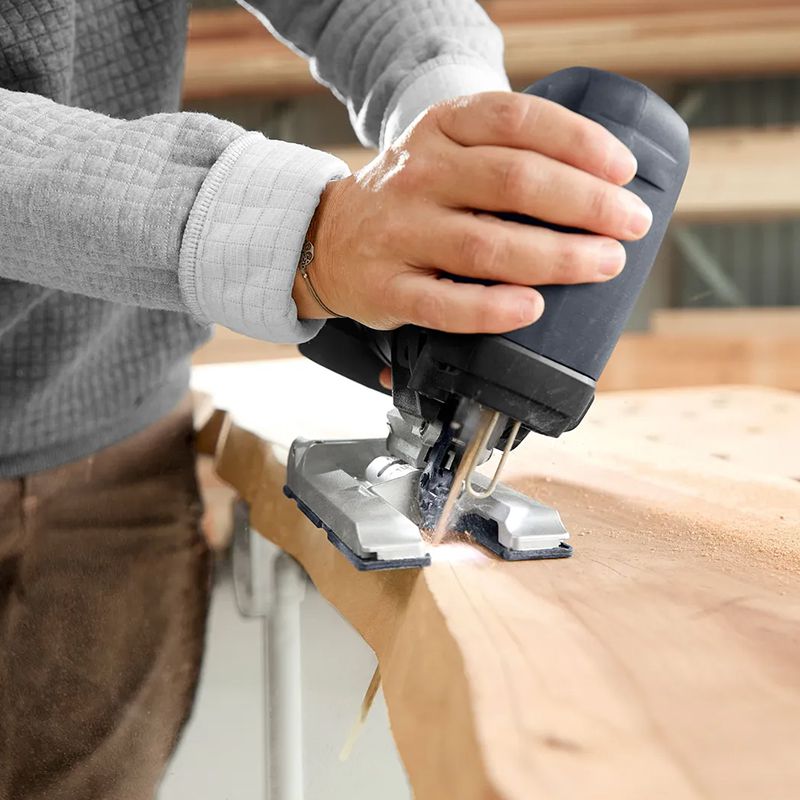

- Versatile cutting – handles solid wood, tight curves and angled cuts with a cutting depth of up to 120 mm.
- Precise guidance – enhanced three-point blade guidance and guiding jaws help deliver accurate, angle-true cuts.
- Powerful performance – consistent torque provides efficient cutting even through large solid-wood cross-sections.

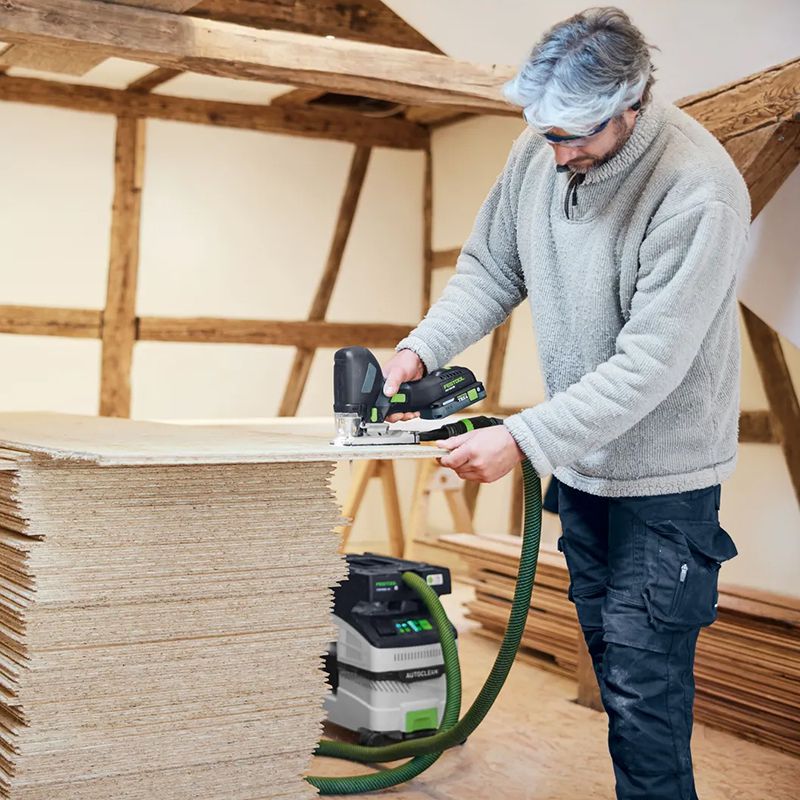

- Clear cutting line – blowing function, switchable lighting and extraction help maintain an unobstructed view of the scribe mark.
- FastFix blade change – tool-free saw blade replacement reduces downtime between applications.

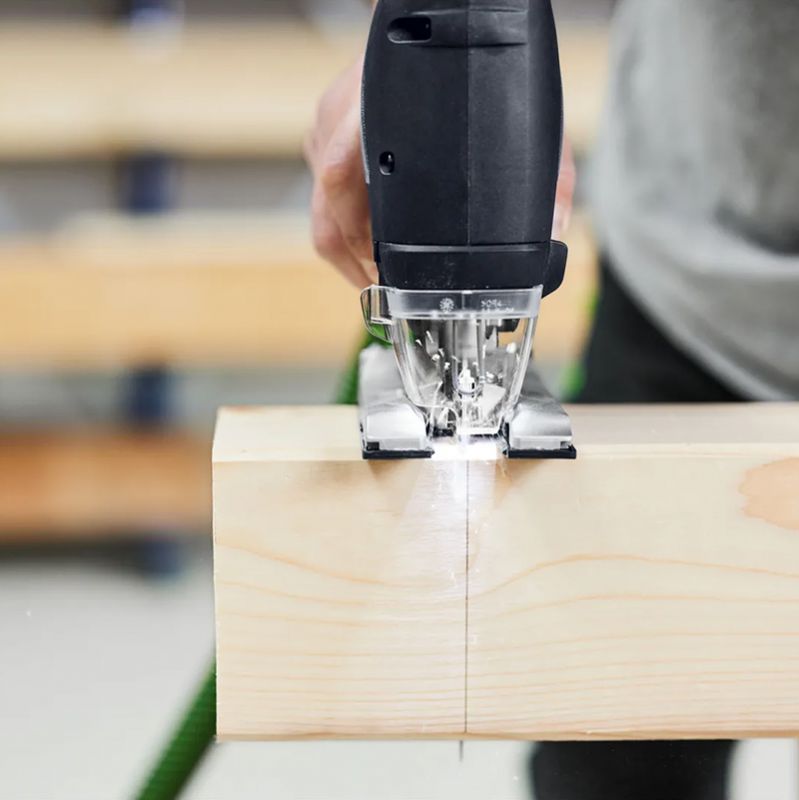

- Clean cut edges – the splinter guard minimises splintering on both sides of the workpiece.
- Material-specific control – adjustable speed and automatic startup support precise and efficient cutting.
- Adjustable pendulum stroke – four-stage adjustment allows cutting speed and precision to be matched to the application.
- Accurate angled cuts – adjustable table supports inclined cuts up to 45° on both sides and locks at 0° for precise 90° cuts.
- Bluetooth connectivity – access operating data, accessory information and extractor control through the Festool app.
Main Applications

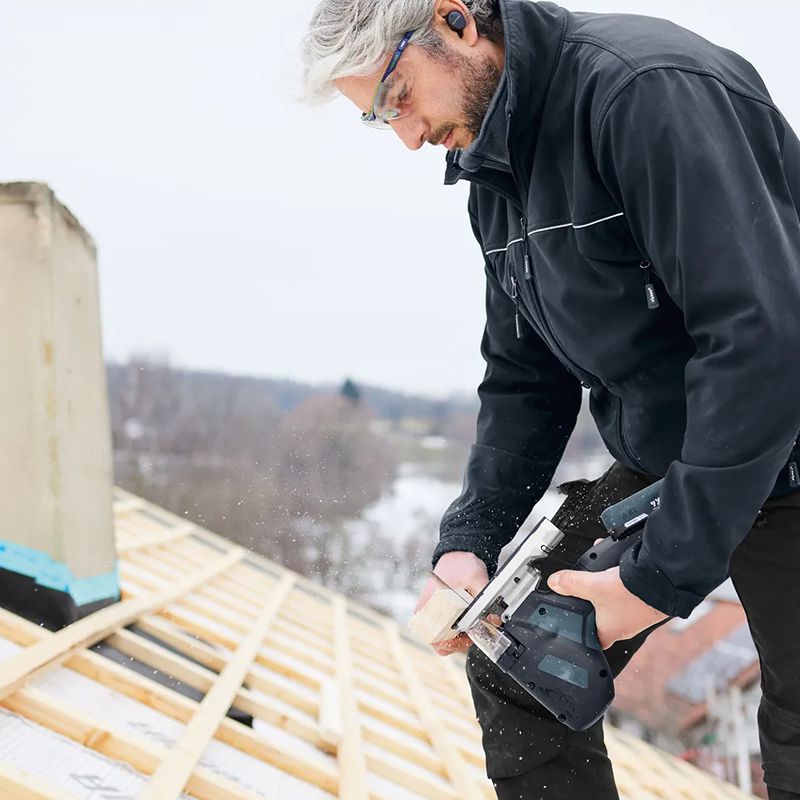

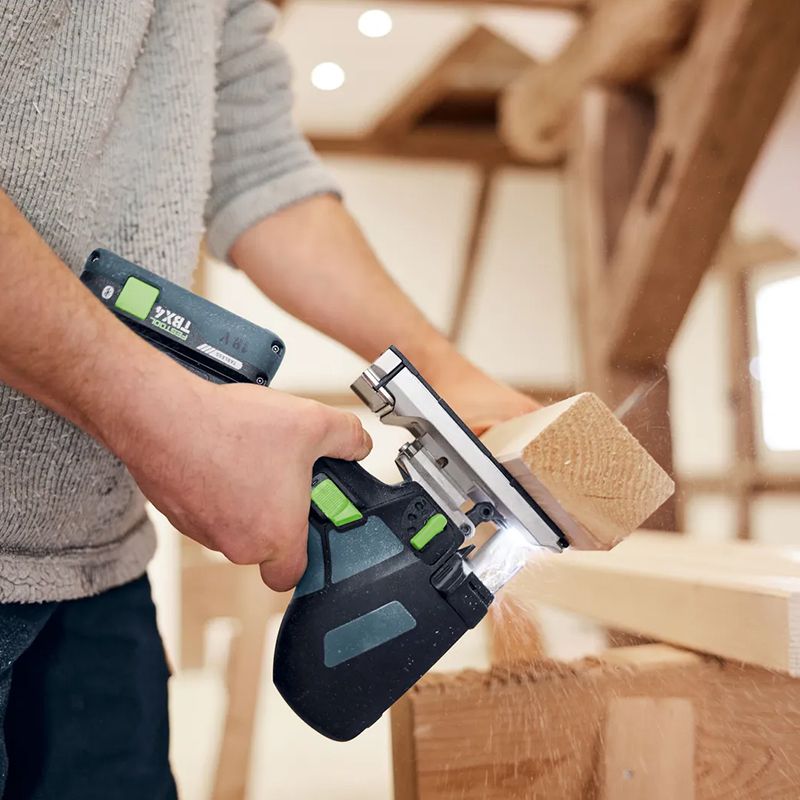

- Precise separation and adjustment cuts in beams, rafters and purlins up to 120 mm thick.
- Cutting formwork, terrace boards and stair treads to exact contours.

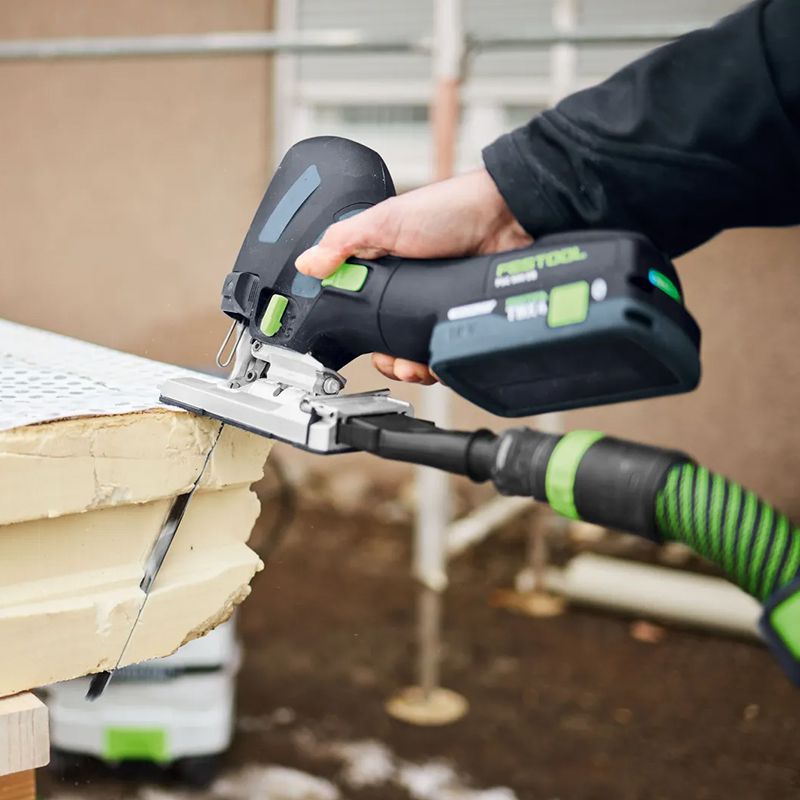

- Cutting insulation and sandwich panels with steel or OSB facings.
- Customisation work on furniture, kitchens and interior fittings.
- Creating cut-outs for sinks and kitchen hobs.

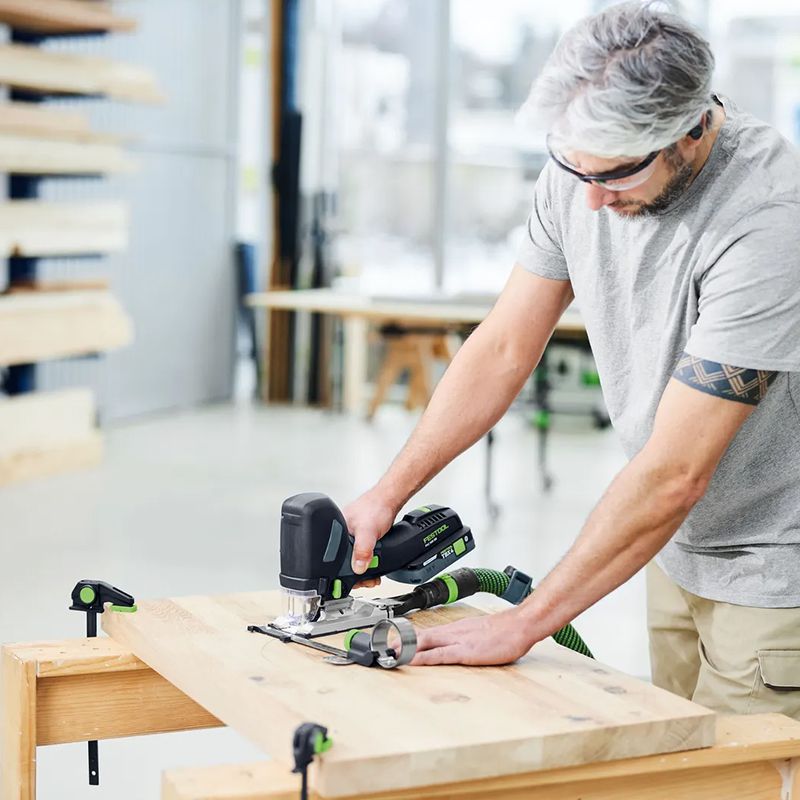

- Cutting circles and curves.
- Accurate slanted and angled cuts.
Technical Data
| Battery Voltage | 18 V |
| Stroke Rate | 1,500 - 3,800 min⁻¹ |
| Pendulum Adjustment | 4 stages |
| Stroke Length | 26 mm |
| Cutting Depth in Wood | 120 mm |
| Cutting Depth in Non-Ferrous Metals | 20 mm |
| Cutting Depth in Soft Steel | 10 mm |
| Max. Inclined Position | 45° both sides |
| Drive Type | Battery |
| Product Weight | 2.20 kg |
| Transport Weight incl. Accessories | 4.40 kg |
| Centre | 26 mm |
Noise & Vibration
| Vibration Emission Value Ah | 7.00 m/s² |
| Standards Series EN | 62841 |
| Noise Uncertainty K | 5.00 dB |
| Vibration Uncertainty K | 1.50 m/s² |
| Sound Pressure Level LpA | 91.00 dB(A) |
| Sound Power Level LWA | 99.00 dB(A) |
