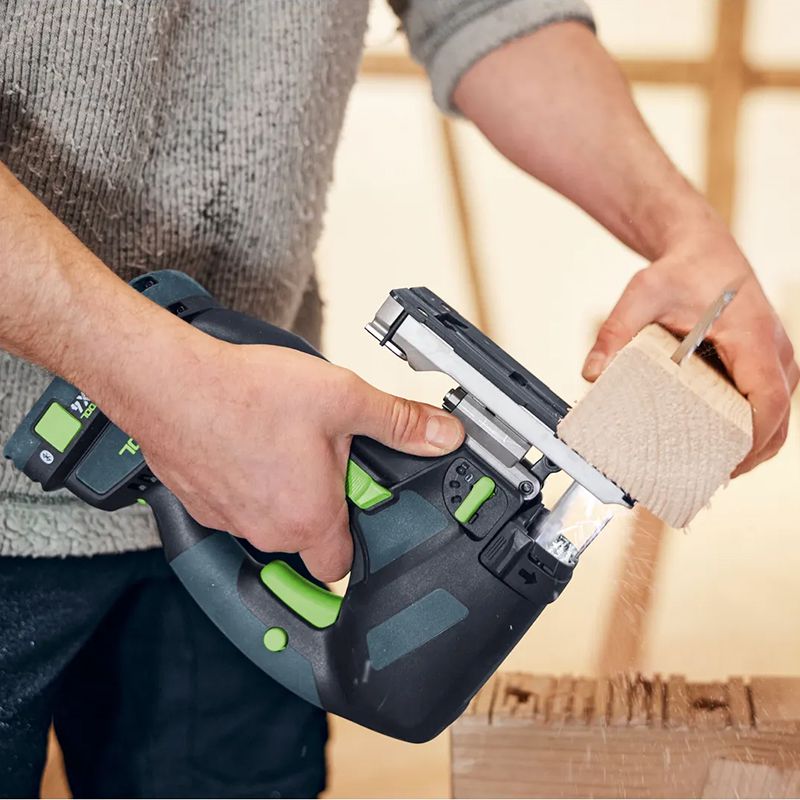

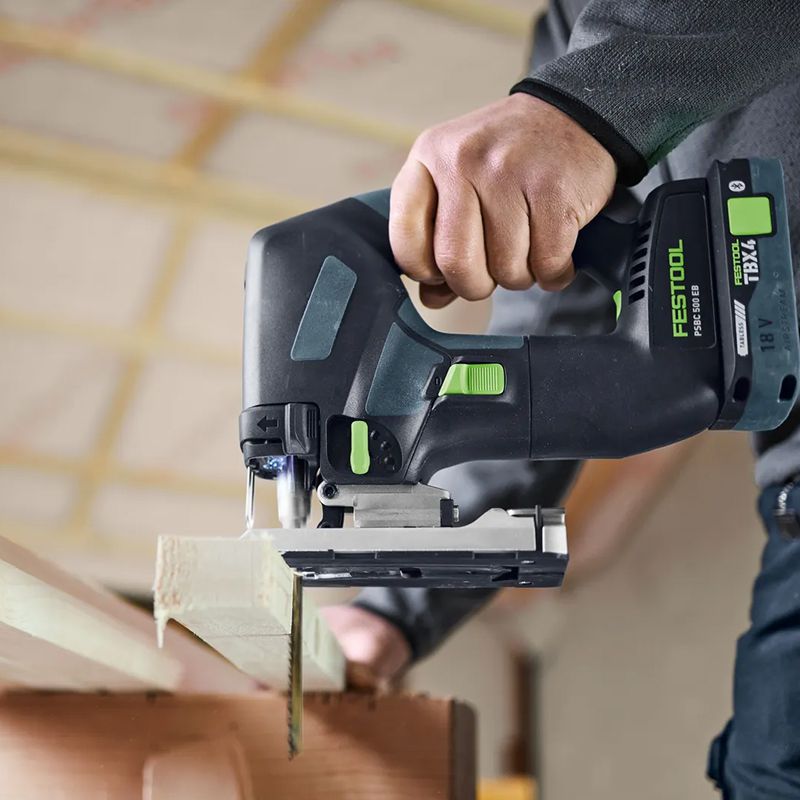

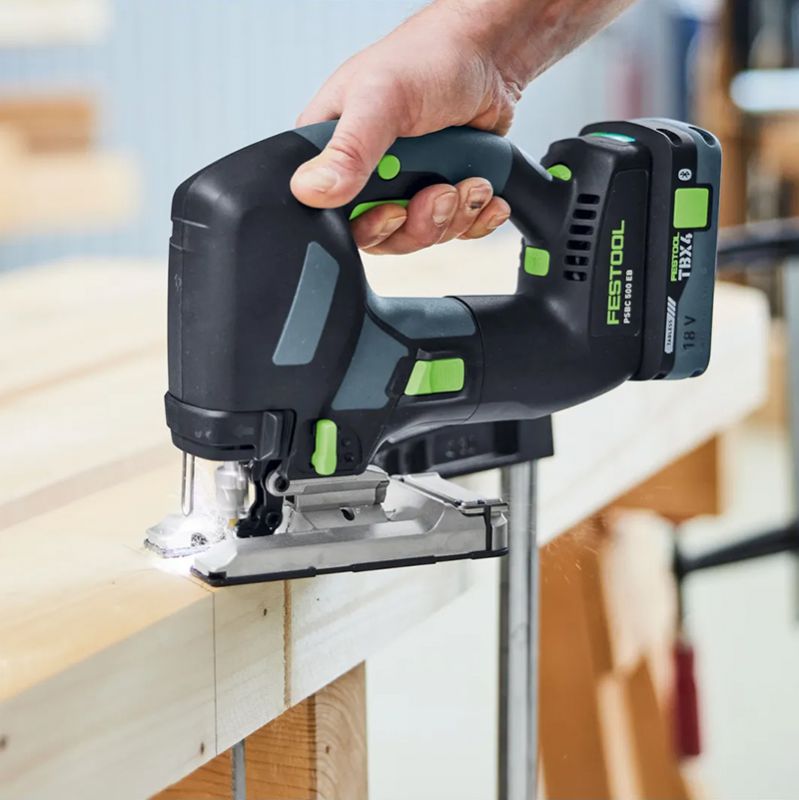

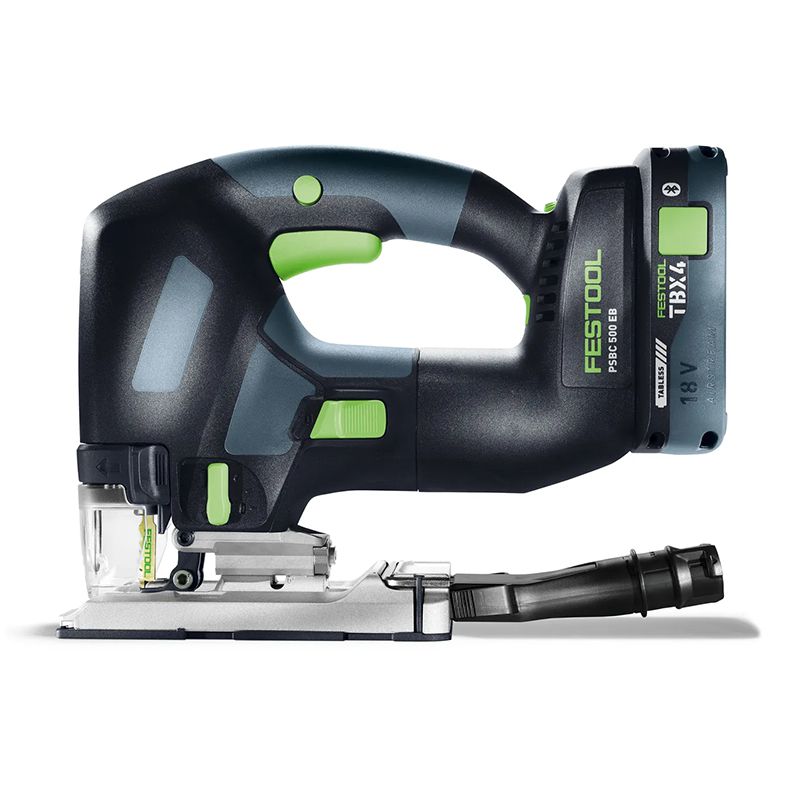

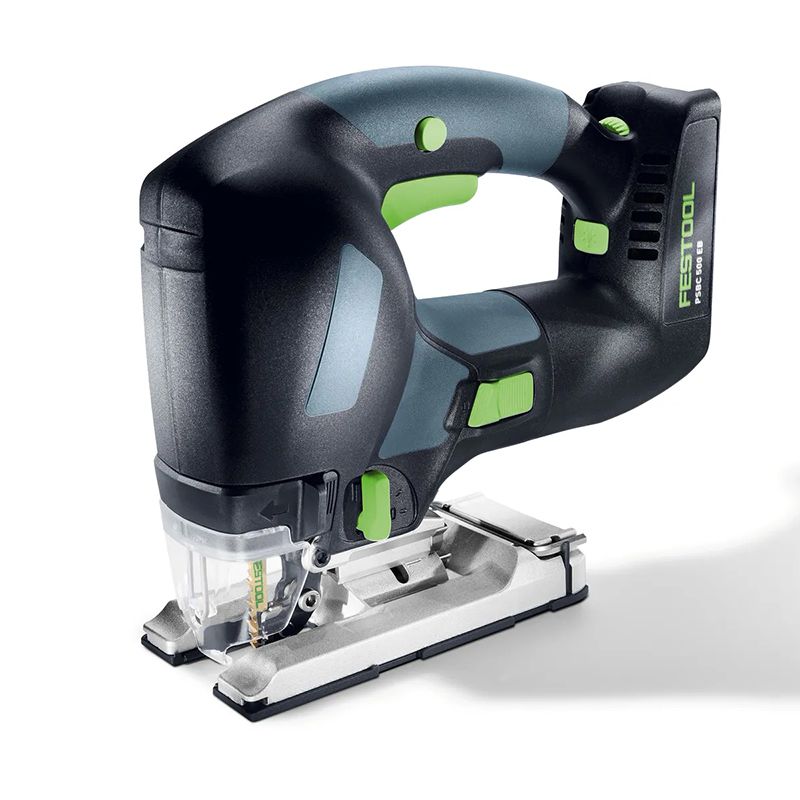

Festool PSBC 500 EB-Basic Cordless Pendulum Jigsaw
Powerful and precise cordless jigsaw performance for demanding professional cutting applications.
18V • 120mm Cutting Depth • FastFixThe Festool PSBC 500 EB-Basic cordless pendulum jigsaw combines powerful traction, precise blade guidance and versatile cutting performance for demanding professional applications. With a cutting depth of up to 120 mm in wood, it is designed to tackle everything from large solid-wood cross-sections to tight curves and accurate angled cuts.
Enhanced three-point saw blade guidance with guiding jaws helps deliver precise, angle-true results, while consistent torque ensures reliable cutting performance even through substantial timber sections. Adjustable speed, automatic startup and selectable pendulum action allow the machine to be matched closely to the material and application.

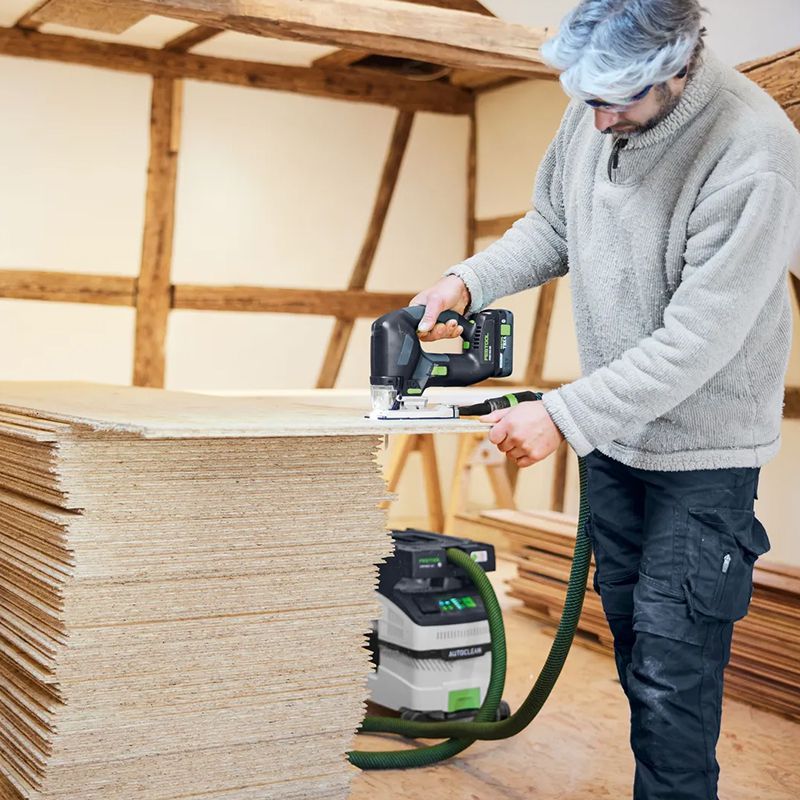

Tool-free FastFix saw blade changes help minimise downtime, while the blowing function, deactivatable lighting and extraction capability provide a clear view of the cutting line. Bluetooth connectivity also enables access to operating data, accessories and compatible extractor control through the Festool app.
Key Features
- Versatile cutting – excels in large solid-wood cross-sections, tight curves and angled cuts with a cutting depth of up to 120 mm.
- Precise guidance – enhanced three-point blade guidance and guiding jaws help ensure accurate, angle-true cuts.
- Powerful performance – consistent torque provides efficient cutting even through demanding solid-wood sections.
- Clear cutting line – blowing function, switchable lighting and extraction help maintain an unobstructed view of the scribe mark.
- FastFix blade change – tool-free saw blade replacement reduces downtime and supports uninterrupted working.
- Clean cut edges – the splinter guard helps minimise splintering on both sides of the workpiece.
- Material-specific control – adjustable speed and automatic startup support precise and efficient operation.
- Adjustable pendulum stroke – four-stage adjustment allows feed speed and cutting precision to be matched to the task.
- Accurate angled cuts – adjustable table supports cuts up to 45° on both sides and locks at 0° for precise 90° cutting.
- Bluetooth connectivity – access operating data, accessory information and extractor control through the Festool app.
Main Applications
- Precise separation and adjustment cuts in beams, rafters and purlins up to 120 mm thick.
- Cutting formwork, terrace boards and stair treads to exact contours.
- Cutting insulation and sandwich panels with steel or OSB facings.
- Customisation work on furniture, kitchens and interior fittings.

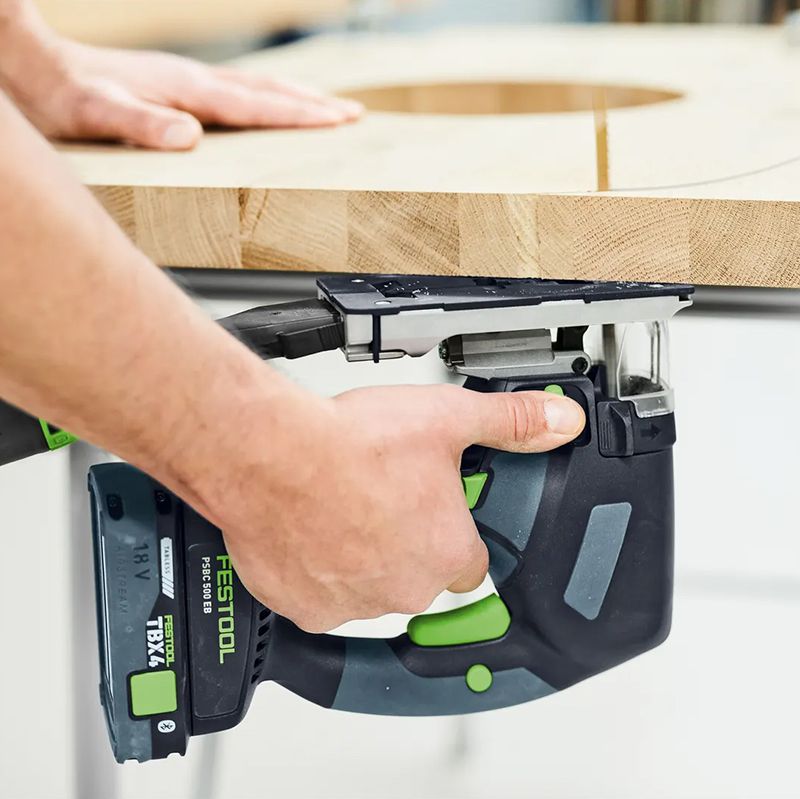

- Creating cut-outs for sinks and kitchen hobs.
- Cutting circles and curves.
- Accurate slanted and angled cuts.
Technical Data
| Battery Voltage | 18 V |
| Stroke Rate | 1,000 - 3,800 min⁻¹ |
| Pendulum Adjustment | 4 stages |
| Stroke Length | 26 mm |
| Cutting Depth in Wood | 120 mm |
| Cutting Depth in Non-Ferrous Metals | 20 mm |
| Cutting Depth in Soft Steel | 10 mm |
| Max. Inclined Position | 45° both sides |
| Drive Type | Battery |
| Product Weight | 2.40 kg |
| Transport Weight incl. Accessories | 4.80 kg |
| Centre | 26 mm |
Noise & Vibration
| Vibration Emission Value Ah | 7.00 m/s² |
| Standards Series EN | 62841 |
| Noise Uncertainty K | 5.00 dB |
| Vibration Uncertainty K | 1.50 m/s² |
| Sound Pressure Level LpA | 91.00 dB(A) |
| Sound Power Level LWA | 99.00 dB(A) |
