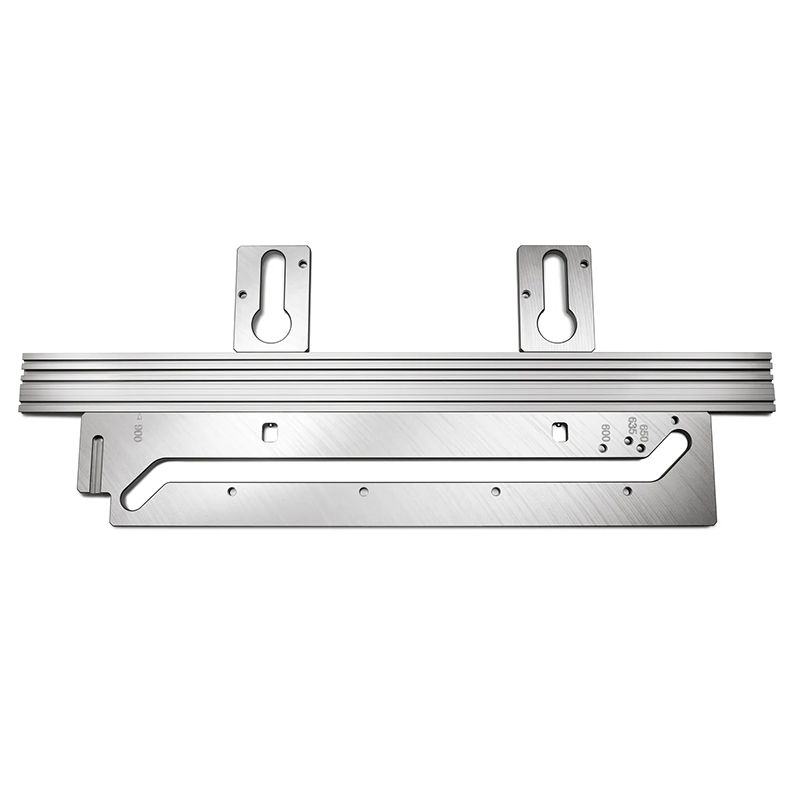

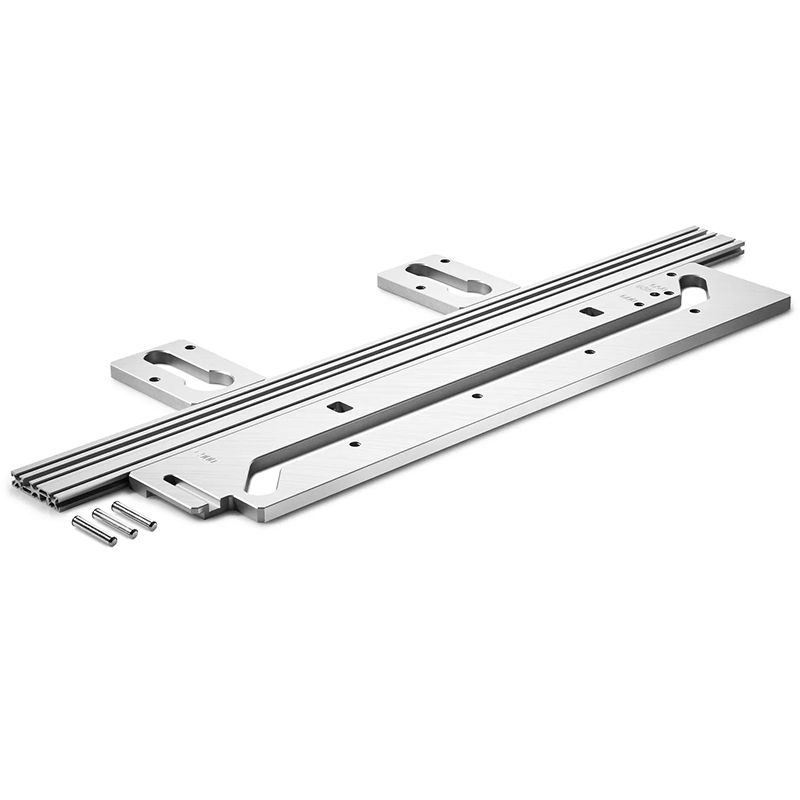

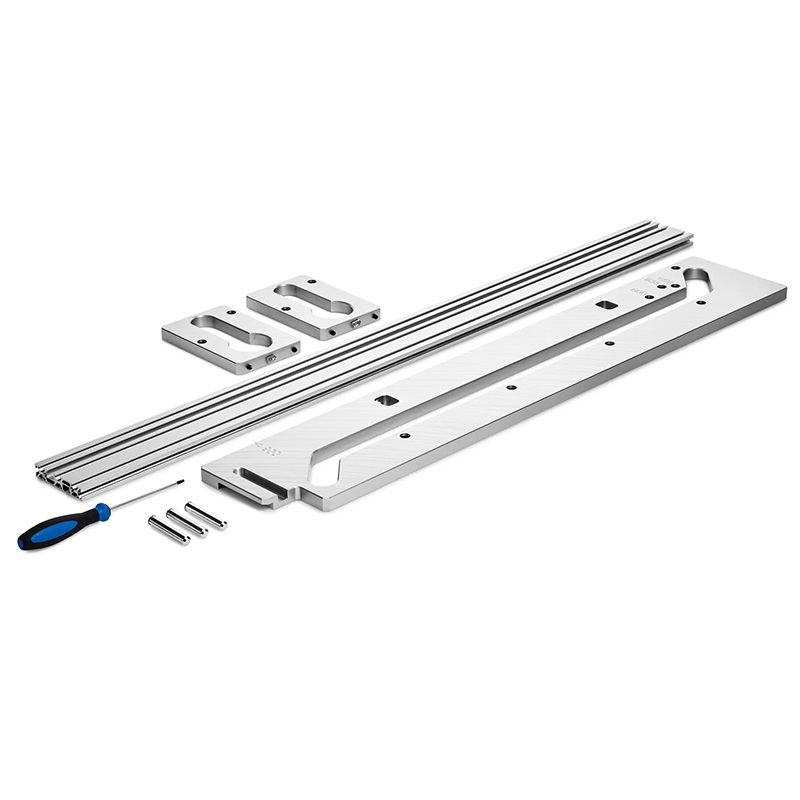

Festool 578727 APS 900-3 Worktop Routing Template for 600-900mm Panels

Precise joining.

APS 900-3 • Worktop Routing Template • Up to 900 mm

Technical Data

Dimensions (L x W x H)	1,000 x 380 x 16 mm
Fixed Panel Depths	600 / 635 / 650 mm
Adjustable Panel Depth	Up to 900 mm
Cutter Diameter	14 mm
Copying Ring Diameter	30 mm
Worktop Connector Bolt Length	65 / 150 mm

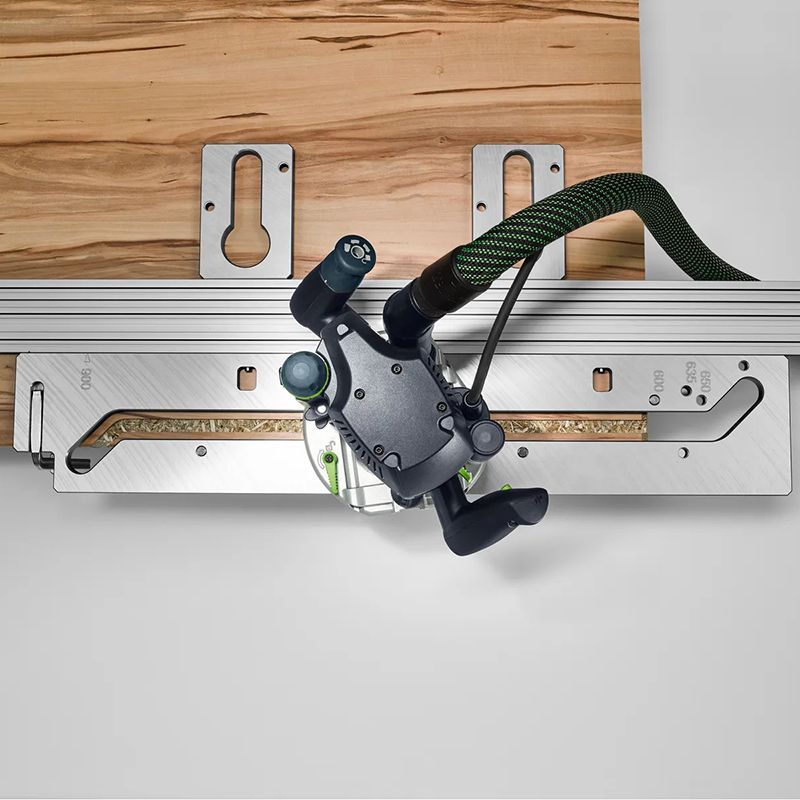

The Festool APS 900-3 worktop routing template is designed for precise, flush 90° joints between wooden worktops and panels. Its robust aluminium construction and integrated clamping system help keep the template securely positioned, supporting accurate results even when the router makes several passes along the same groove.

Fixed stops allow rapid setup for common panel depths of 600, 635 and 650 mm, while the template can also be adjusted for panel depths up to 900 mm. For larger worktops, extension profiles allow the system to be used beyond 900 mm.

Key Features

Precise worktop joints: Designed for accurate, flush 90° corner and panel connections.
Robust aluminium construction: Durable routing template for regular workshop and installation use.
Common fixed depths: Integrated stops for 600 mm, 635 mm and 650 mm worktop depths.
Adjustable up to 900 mm: Suitable for a wide range of worktop and panel sizes.
Expandable system: Extension profiles allow work on panel depths greater than 900 mm.
Fitting recess templates: Two freely positionable routing templates allow recesses to be produced for conventional underside worktop fittings.

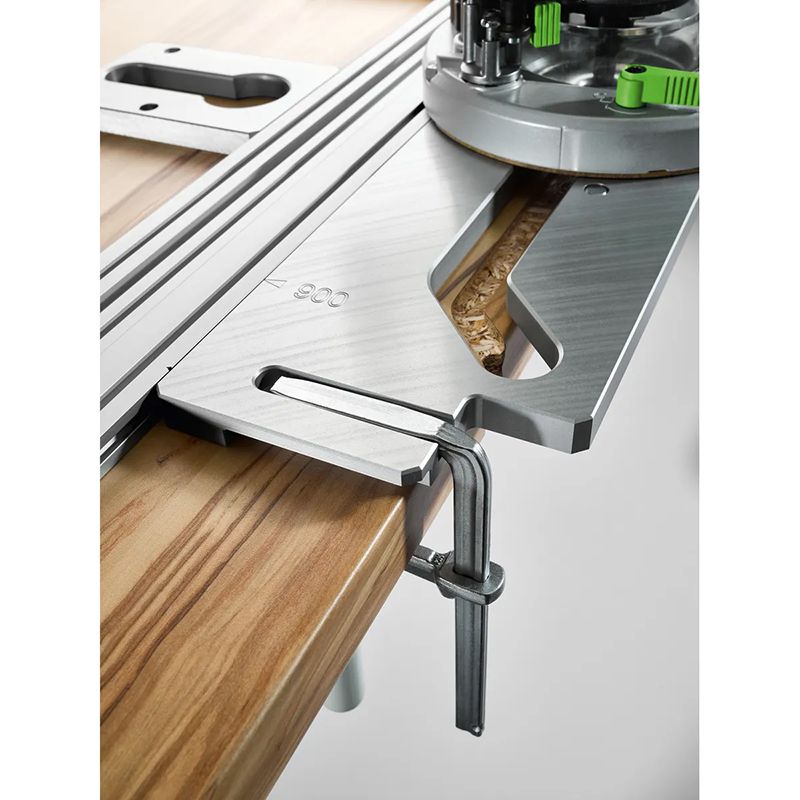

Secure positioning: Integrated clamping helps maintain accurate alignment over repeated router passes.
Router compatible: Designed for use with a 14 mm groove cutter and 30 mm copying ring.

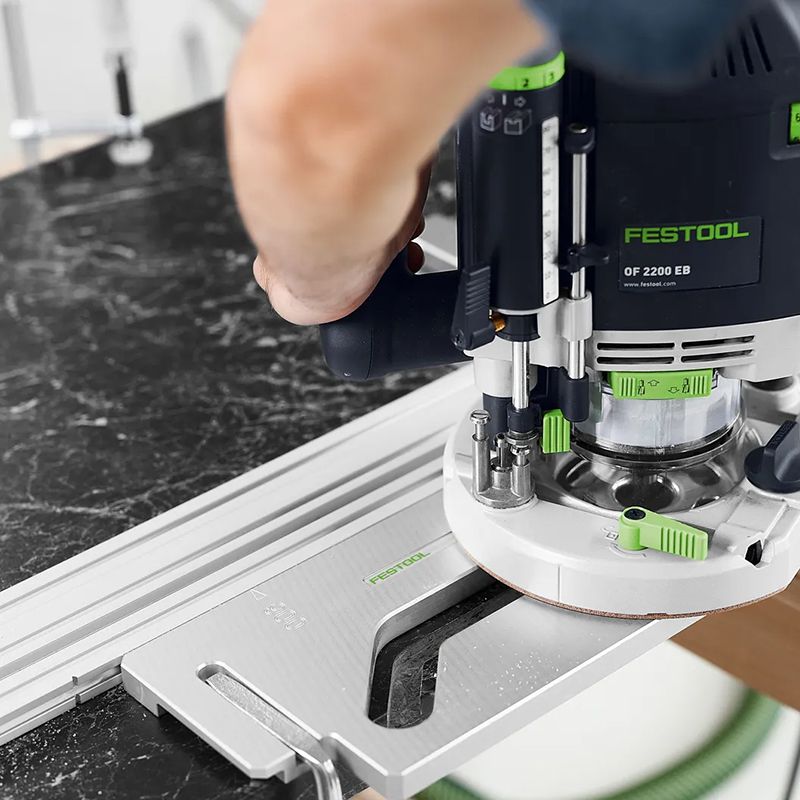

Recommended routers: Particularly suited to Festool OF 1400 and OF 2200 routers.
