Festool 583290 Hole drilling set LR 32 Set

Stock Ref:
FES583290
Temporarily Out of Stock
Festool
-
Features & Specification

Festool 583290 Hole drilling set LR 32 Set

For routers OF 900, OF 1000, OF 1010, OF 1400 in the FS-LR32 hole drilling system

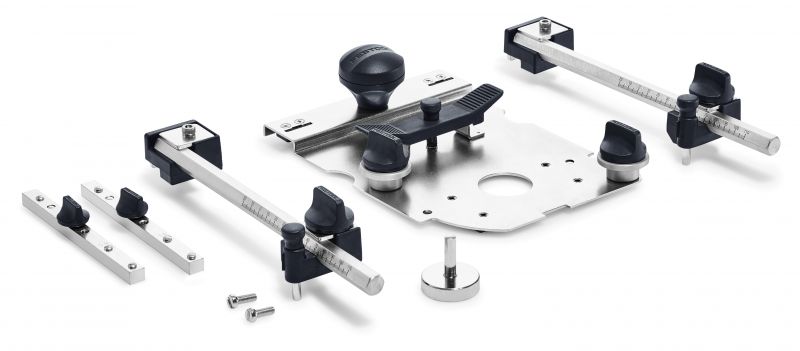

Items included

  • guide plate
  • centring mandrel
  • 2x side stop
  • 2x Longitudinal stop

Functions
Holes in series

Hole series are always drilled with a spacing of 32 mm and a hole diameter of 5 mm or 3 mm. The hole series drilling system is a set for fast and simple production of series of holes for shelf supports, rear wall supports and fittings with the OF 1010 or OF 1400 router.

  • With the LR 32 system – comprising the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and the hole drilling system – precise rows of holes spaced 32 mm apart can be drilled with the Festool router
  • The LR 32 guide rail is aligned quickly and parallel to the two side stops, which are positioned by means of an adjustable stop at the workpiece and guide rail
  • The guide rail is precisely positioned with 9.5, 16 or 32 mm edge clearance over the stopper in the longitudinal direction
  • Centring mandrel for perfect centring of the router on the guide plate
  • Spring-loaded positioning rocker for effective operation when drilling the hole series
  • Perfectly guided through fine adjustment of the guide play and additional handle on the guide plate
  • for use with hole line guide rails

Usage
Main applications

  • Preparing holes series with 32 mm spacing
  • Drilling of fittings like cupboard hinges
Brand: Festool
Category: Accessories
