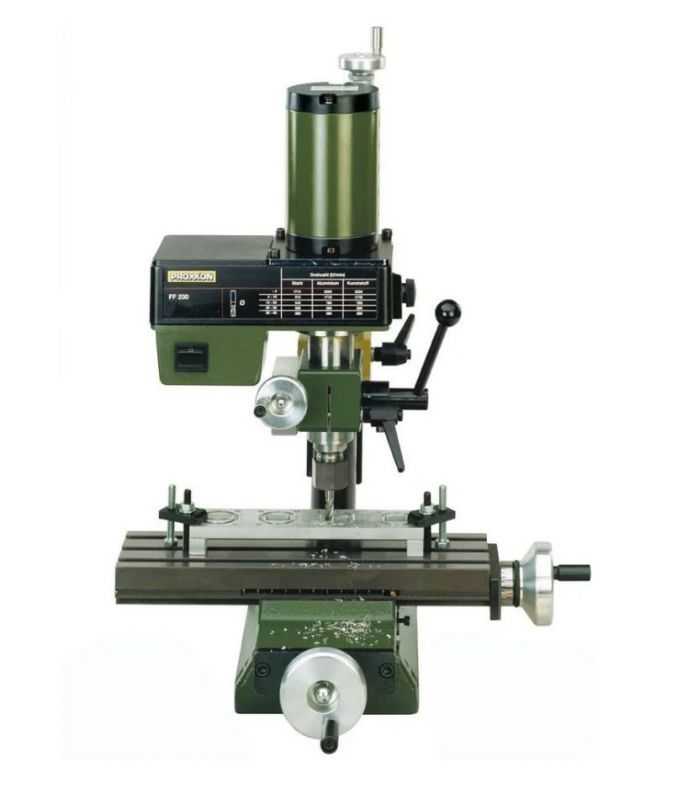

Proxxon MICRO Milling Machine FF 230 230v

The headstock swivels through 360°, indicated on a scale.

Height is adjusted via a zero adjustable handwheel, also used as fine feed when milling (one revolution equals 1mm travel). The quill and headstock may be locked in position, essential when milling. The powerful motor effects drive via a poly-V belt, yielding high torques, especially at lower speeds. Collets of 6 - 8 and 10mm are included. The solid table is T-slotted to the MICROMOT standard of 12 x 6 x 5mm.

Other technical data:
230V. 140W. 50/60Hz. Spindle speeds of 280 - 550 - 870 - 1,200 - 1,500 and 2,200rpm. 30mm travel. Table size 270 x 80mm, column 35 x 400mm long. X-Ytravel is 170 x 65mm. Maximum height 180mm and depth 130mm. Overall height approx. 500mm. Weight approx. 17kg.
