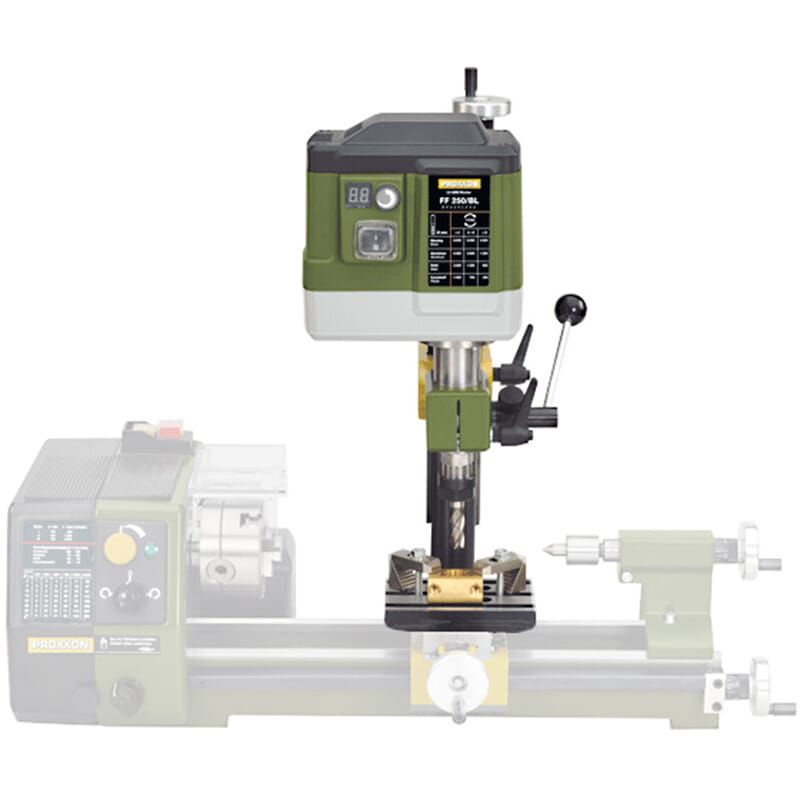

Turn the PD 250/E or PD 400 lathes into a complete machining center.

The milling PF 250/BL is designed and built for milling and drilling on a PROXXON PD 250/E or PD 400 lathe. Both of which are already drilled accept this mill/drill head.
The mill/drill’s table replaces the lathe's top slide, thus adding a compound table, with X-Y travel being longitudinally and cross-wise respectively of 110 x 70mm, with 3 T-slots.
The millhead tilts up to 90° left and right. Speed can be pre-selected from 400 - 6,000rpm, the head features a digital speed indication.
Speed sensors guarantee high torque also in the lower speed range.
The tool holder uses ER 16 collets, the PF 250/BL is supplied with 6mm, 8mm and 10mm collets.
A rotational speed chart on the front of the housing shows the appropriate spindle speeds for the most common applications.
Lathe not included.


Technical details
Diameter of Column: 35 mm
End Milling Capacity: 10 mm
Face Milling Capacity: 10 mm
Head Tilt: 90° - 0° - 90°
Lateral Table Movement: 170 mm
Longitudinal Table Movement: 65 mm
Max Drilling Mild Steel: 10 mm
Nett Weight: 17 kg
Nose of Spindle to Table [Max]: 200 mm
Overall L x W x H: 180 mm x 130 mm x 500 mm
Plug Fitted: UK 3 pin plug
Power: 250 W
Rating: Home/Light Trade
Spindle Speed: 400 - 6,000 rpm
Spindle Taper: ER16 Collet
Spindle Travel: 30 mm
T Slot Size: 12 mm x 8 mm
Table Size: 110 mm x 70 mm
Throat: 65 mm
Voltage: 230 V
