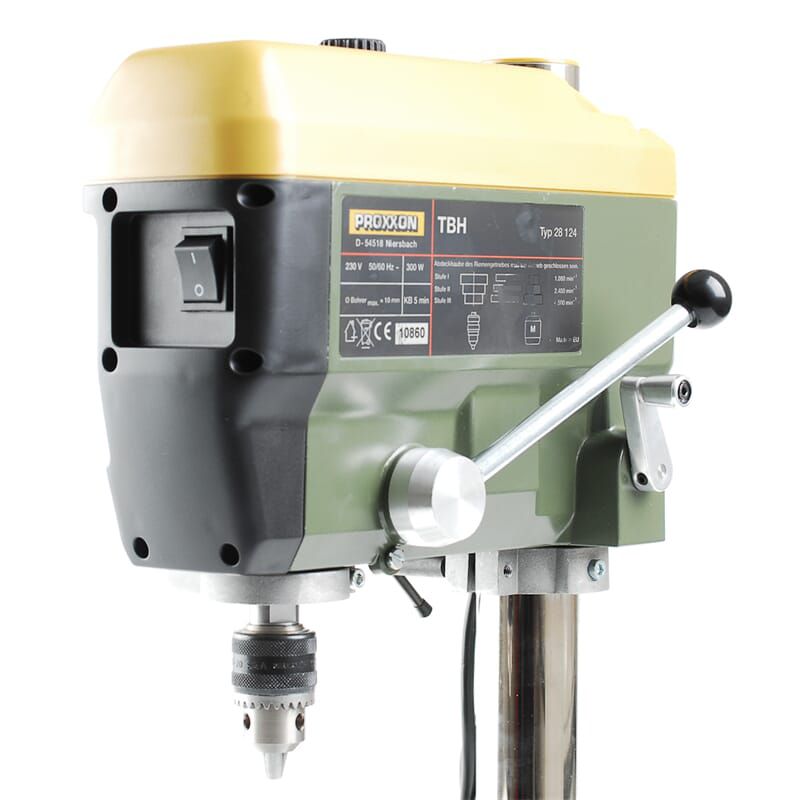

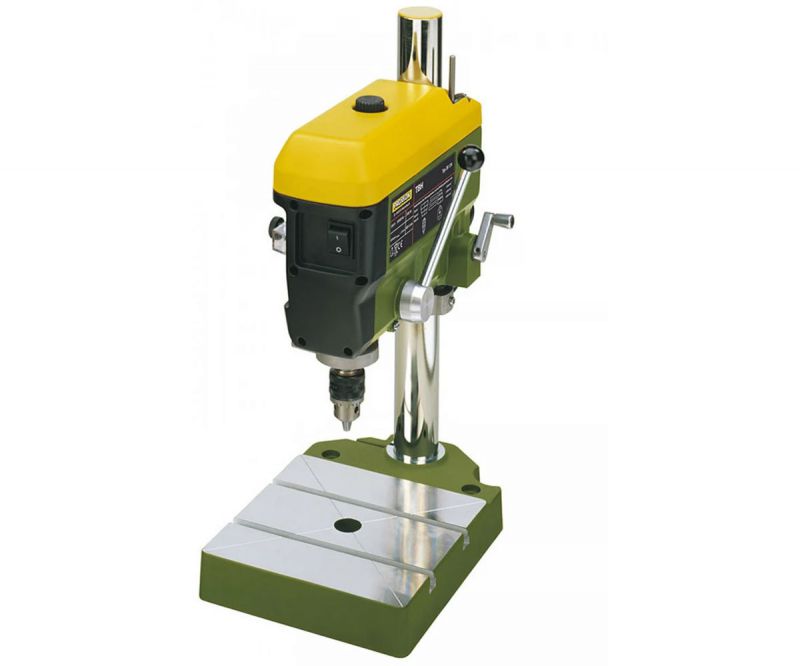

Bench Drill Press TBH

Precision bench drill with convenient rack-and-pinion height adjustment and smooth-operating hand crank.

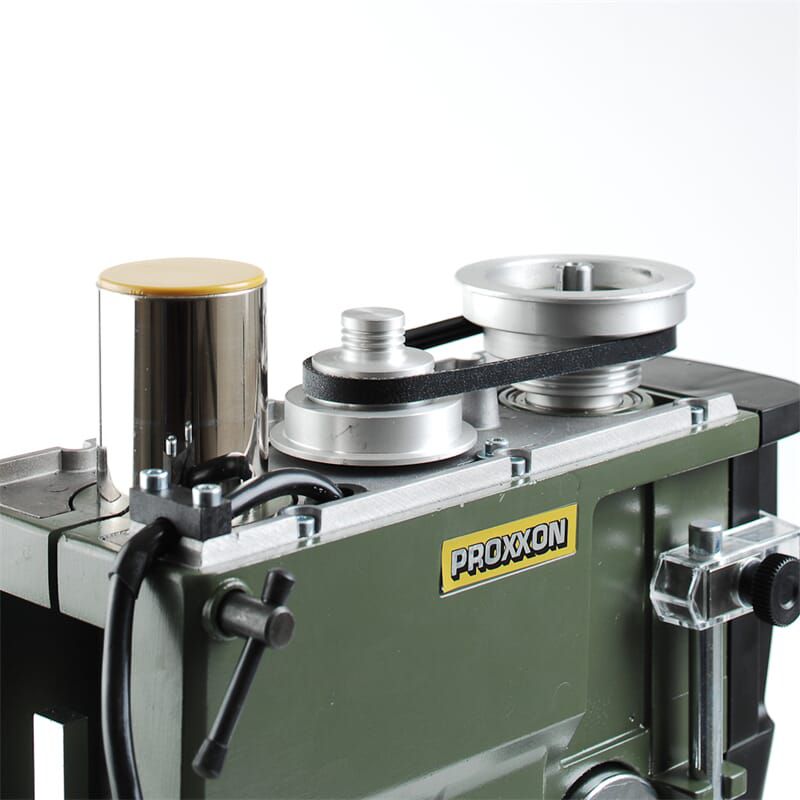

Powered by a durable, high-performance DC motor. The spindle is driven via a triple belt pulley system, delivering approximately six times more torque in the lower speed range — ideal for controlled, powerful drilling.

Features a practical drill depth indicator with adjustable depth stop for repeat accuracy. The precision-bearing drill spindle ensures smooth, accurate operation.

Spindle head with 1/2" thread for compatible industrial-quality chucks. Spindle also includes additional fitting for steel collets (No. 28 200). Ideal for precision jig boring, especially when used with the KT 150 compound table.

Technical Data:

230 V
Spindle speeds: 1,080 / 2,400 / 4,500 rpm
Sliding sleeve stroke: 63 mm
Height adjustment (via crank): 70 mm
Throat depth: 140 mm
Table surface: 200 × 200 mm
Column size: 45 × 500 mm
Tool capacity: up to 10 mm
Drilling capacity in steel: up to 10 mm
Weight: approx. 10 kg
