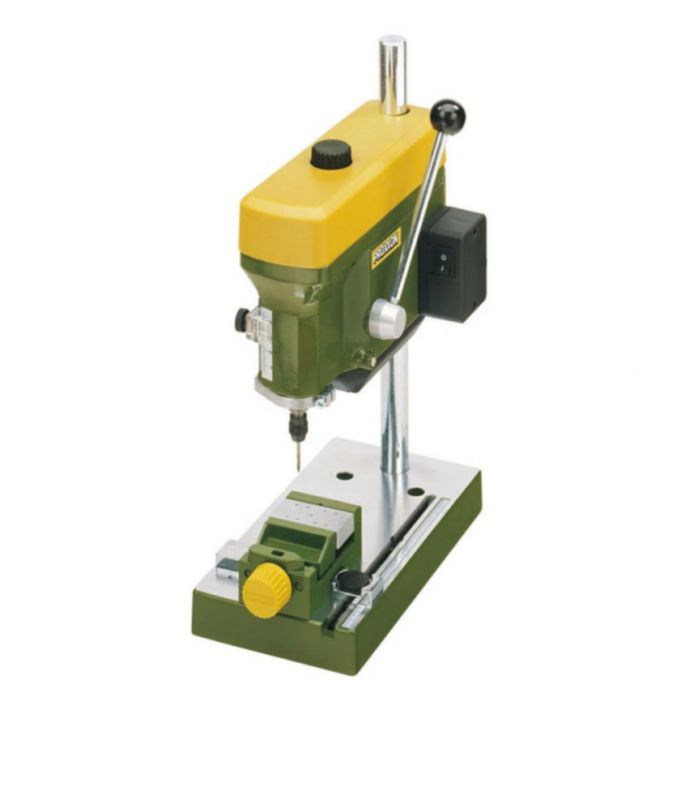

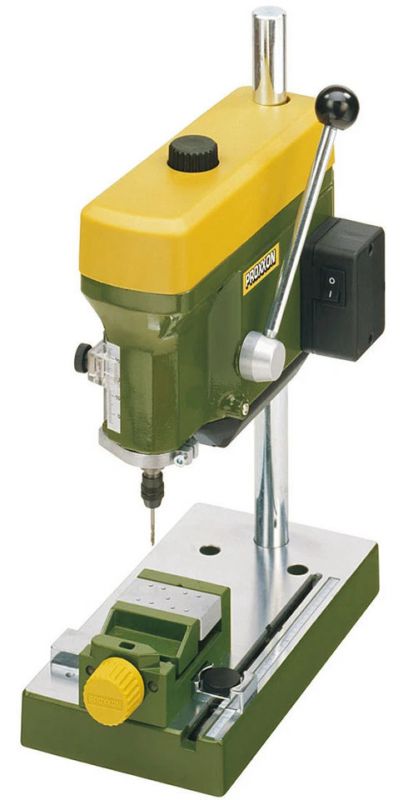

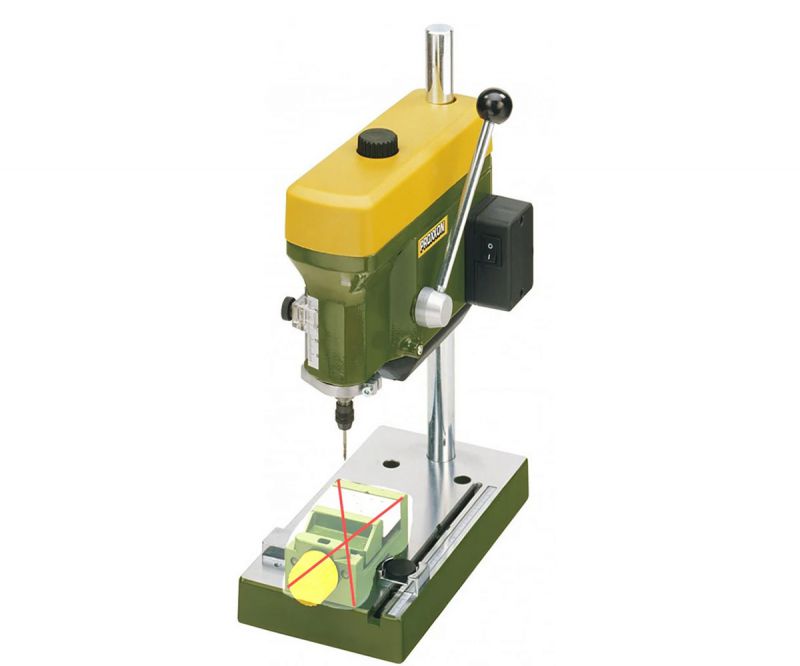

Bench Drill Machine TBM 220

Compact, high-precision bench drill designed for detailed and accurate drilling work. Ideal for model making, electronics, and fine mechanical applications.

Key Features:

High-quality machined worktable made of ribbed die-cast aluminium (220 × 120 mm)
Adjustable fence with scale for precise positioning
Solid hard-chromed steel column (280 mm height × 20 mm diameter)
Super-stable die-cast head with VDE-approved 230V, 85W motor
Power transmission via aluminium pulleys and flat belt
3 spindle speeds: 1,800 / 4,700 / 8,500 rpm
Chrome feed lever with adjustable depth scale
Spindle supported by three high-quality sealed bearings

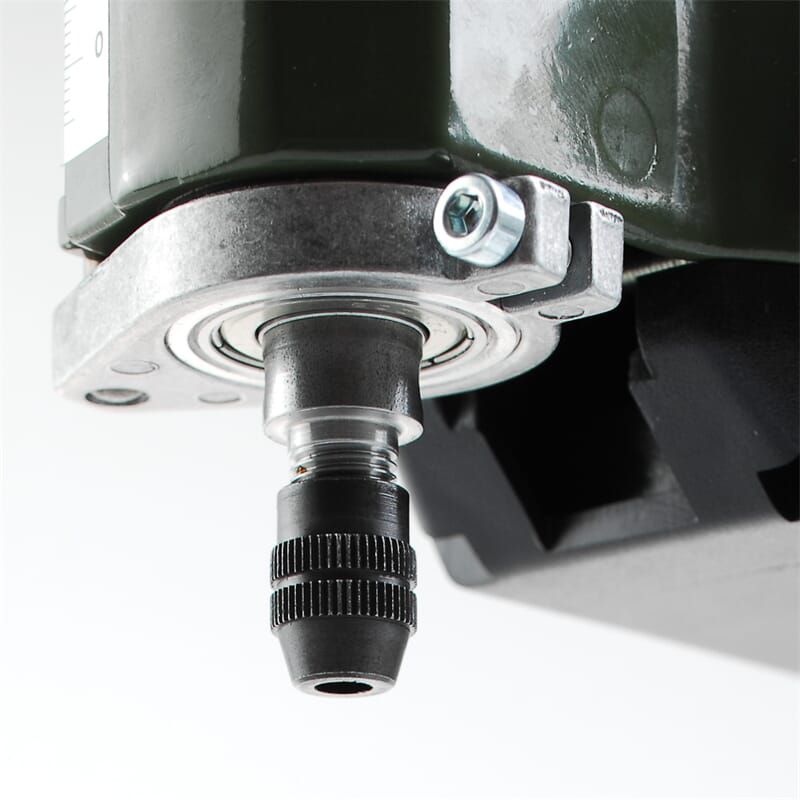

Recessed spindle for MICROMOT steel collets
Additional 3/8" thread for drill chucks
Extremely high rotational accuracy with 30 mm feed
Quill diameter: 32 mm with return spring
Throat depth (column to spindle): 140 mm
Quick coarse height adjustment via clamp levers
Maximum working height: 140 mm
Supplied with six triple-slit precision collets (1.0 / 1.5 / 2.0 / 2.4 / 3.0 / 3.2 mm)

Technical Details:
230V 85W 50–60Hz
Spindle speeds: 1,800 / 4,700 / 8,500 rpm
Feed stroke: 30 mm
Throat depth: 140 mm
3/8" threaded spindle
Weight: 3.3 kg

A compact yet highly accurate drilling solution for precision workshop tasks.
