REMS 578X14 Cordless Mini-Press Pipe Press Fit Crimp Gun 22V Promotion Pack - REMS578X14-R220G

578X14 REMS Mini-Press 22V ACC now with 2x 2.5Ah batteries until further notice (normally 1.5Ah*), L-Boxx, Rapid Charger & 4x Jaws/Tongs

Pressing tongs for all common systems
Complete assortment of REMS pressing tongs Mini/pressing rings for all common press fitting systems (page 144 – 166). Can be driven by all REMS radial presses 22 kN. Highly durable pressing tongs/pressing rings made of forged, tenacious, specially hardened special steel. Pressing contours of REMS pressing tongs/pressing rings are system-specific and correspond to the respective press-fitting system. Thus perfect system conformity, and safe press jointing. Adapter tongs are required for driving the REMS 45° (PR-2B) pressing rings, see page 166. Very compact design and low weight of the REMS Mini pressing tongs due to the special arrangement of the pressing tongs connection (Patent EP 1 952 948). Recesses in the pressing jaws for safe guidance of the connecting plate for offset-free pressing (Patent EP 2 347 862).

Design
Super light, super small, super handy. Drive unit with battery only 2.5 kg. Drive unit with pressing tongs V 15 only 31 cm long. Works anywhere, free-hand, overhead, also in particularly tight areas. Optimum weight distribution for single-hand operation. The Drive unit with inserted pressing tongs can be put down on the battery ready to pick up. Ergonomically designed housing with soft grip. LED work light for illuminating the workplace. Swivelling pressing tongs seat, rotation angle > 360 °. Secure seating of pressing tongs/adapter tongs by automatic locking.

Pressing operation with ACC
For reliable service, operating and functional safety. Automatic retraction after completion of pressing operation (automatic circuit control). Ultra-fast Pressing in under 4 s.

Drive
Enormous thrust and pressing force for fast and perfect press jointing. Thrust force 22 kN. Powerful electro-hydraulic drive with powerful battery motor 21.6 V, 380 W output, robust planetary gear, eccentric reciprocating pump and compact high power hydraulic system. Safety tip switch.

Battery or mains operation
Li-Ion 22 V Technology. Highly resistant Li-Ion 21.6 V battery with 1.5, 2.5, 5.0 or 9.0 Ah capacity, for long service life. Light and powerful. Li-Ion 21.6 V, 1.5 Ah batteries for approx. 250 pressings, 2.5 Ah for approx. 390 pressings, 5.0 Ah for approx. 780 pressings, 9.0 Ah for approx. 1400 pressings Viega Profipress DN 15 with one battery charge. Graduated charging state display with coloured LED. Operating temperature range – 10 to + 60 °C. No memory effect for maximum battery power. Rapid charger Li-Ion 100 – 240 V, 90 W. Rapid charger Li-Ion 100 – 240 V, 290 W, for shorter charging times, as an accessory. 220 – 240 V/21.6 V, 15 A, voltage supply for mains operation instead of Li-Ion battery 21.6 V, as an accessory.

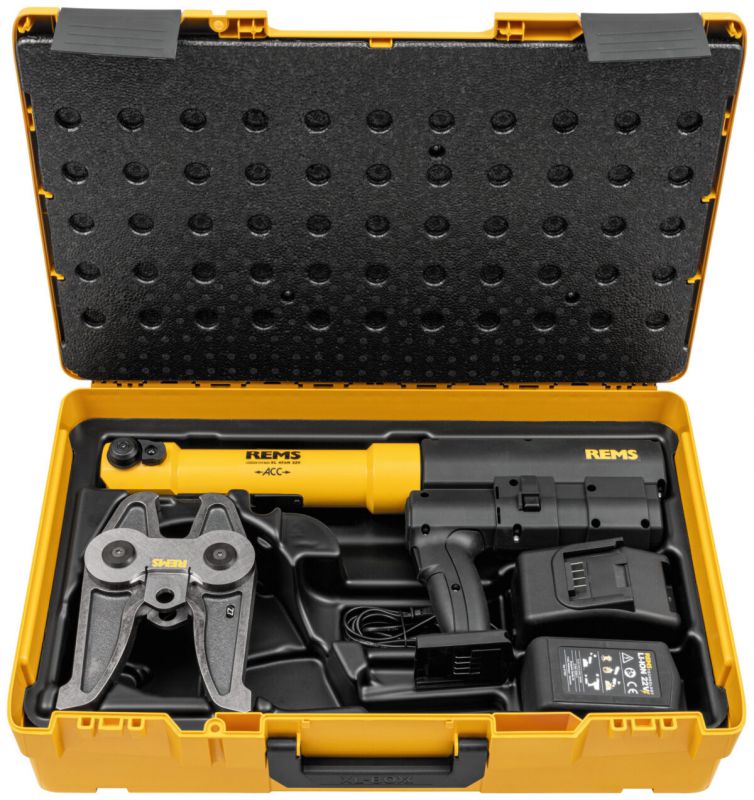

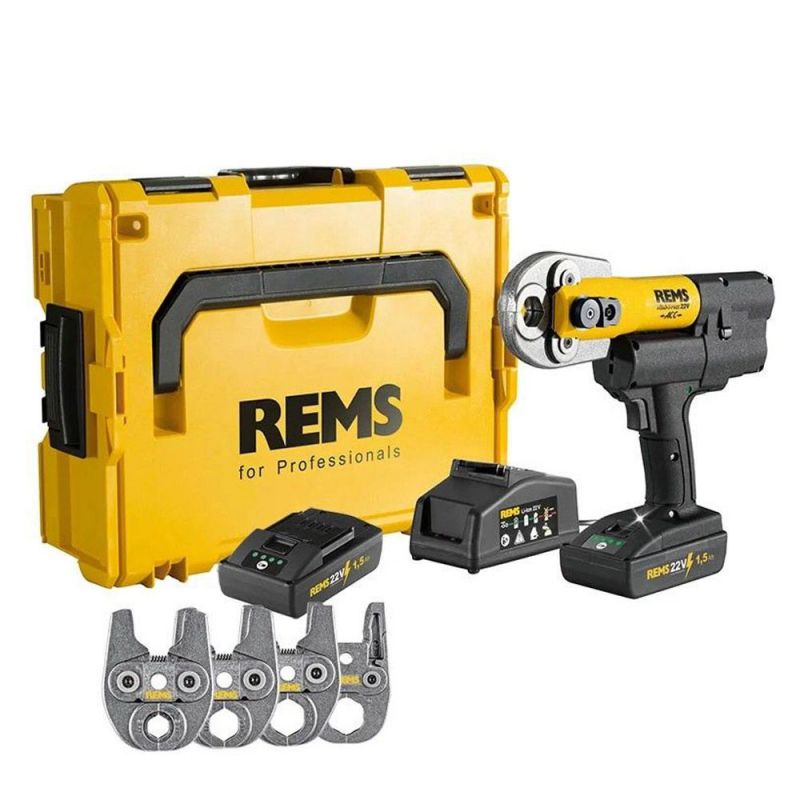

Kit Includes

1x REMS Mini-Press 22 V ACC
2x Li-Ion 21.6 V, 2.5 Ah Batteries until further notice (normally 1.5Ah)
1x Rapid Charger
1x L-Boxx System Case
1x M15 Pressing Tongs Mini
1x M22 Pressing Tongs Mini
1x M28 Pressing Tongs Mini
1x M35 Pressing Tongs Mini
