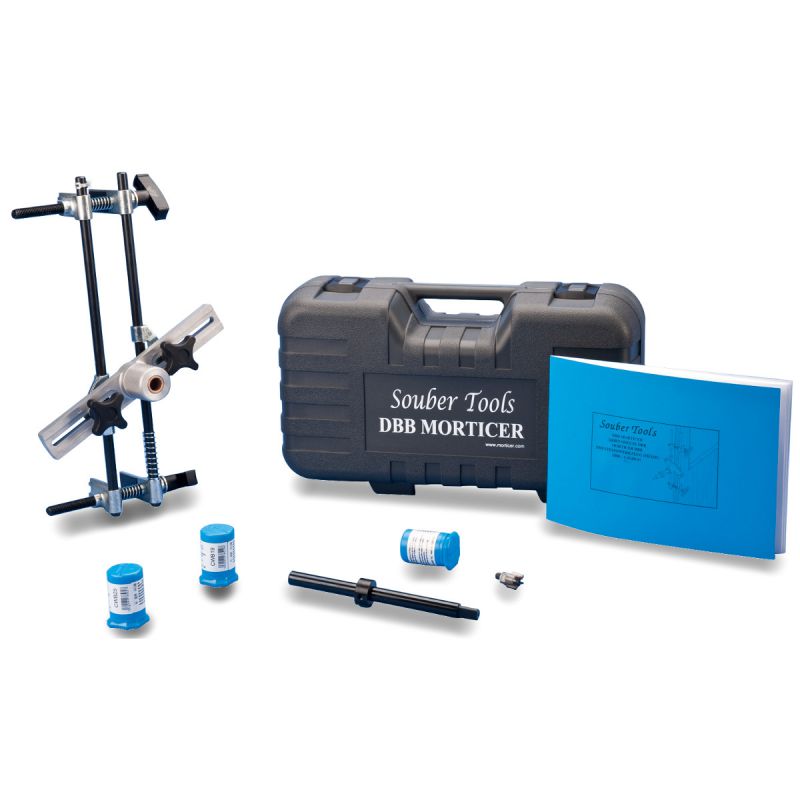

Souber Offset Morticer c/w 3 cutters (CWB19, 22 & 25) JIG2

Key Features

Jig to accurately cut mortices and faceplates using your power drill
Fast and accurate on doors from 35mm - 95mm thick
Can cut door hinges and also some strike plates and electric releases
Self centres and clamps onto the edge of the door
Vertical guides, height and depth stops to ensure you do not overrun the cut area
Fast carbide cutters specially designed for a very clean cut
Supplied with 3 cutters: 19, 22 and 25mm diameter
Carry case and full instructions
Optional accessories available to cut deeper or wider locks
This jig comes with offset morticer
NOTE: This morticer is not Self Centring
Suitable for locks fitted off-centre, hinges and some strike plates
For the self centring morticer see the JIG1

Description

This very precise drilling jig is designed specifically to guide the drilling bit to cut mortices for door locks and their faceplates. It is quick and simple to set up, self centring and locks onto the door edge securely. It really is a simple process: mark the lock length on to the door, select the width of mortice cutter that suits your lock, set the depth collar, pass the drill shaft through the jig’s guide bush, lock the jig to the door and using power from your drill, drive the carbide tipped mortice cutter into the door moving up and down; repeat process for the faceplate. This produces a very clean smooth cut and is one of the fastest most accurate ways to cut a mortice. You can also use it to cut hinges. Power drill with a 13mm chuck running at speeds 2,000 - 3,000 rpm is recommended. Supplied with 3 special carbide tipped cutters: 19, 22 and 25mm covering the most popular lock widths, a shaft for lock up to 100mm in depth and carry case. Other optional accessories available including offset housing kit, longer drill shafts and long drill kit to drill through the end of a door to fit electric locks accurately.

***PLEASE NOTE:- This jig is designed for use with over-rebated or lipped doors where the lock needs to be offset in the door. If you are after the UK version that drills locks in the centre of the door click here***
