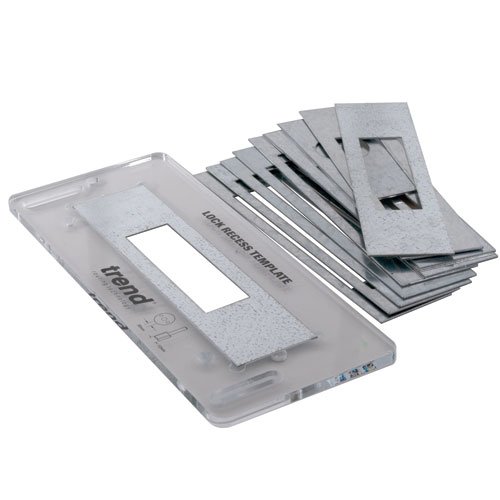

Clear plastic template for use with any plunge router to accurately fit 2, 3 and 5 lever sash and dead mortise locks.
Clear plastic with magnets to hold metal templates.
Includes six recess and three mortise templates.
Requires 12mm diameter x 63mm cut length cutter with 1/2 inch shank and 30mm guide bush. A 1/4 inch extra long cutter can also be used but deepening of mortise with auger bit will be required.
User made batten 44mm x 34mm x 450mm is also needed.
Suitable for following locks Additions H32306, H32331, Chubb 3U75, 3G114, ERA 196-62, 201-31, 201-32, 202-32, 208-31, 221-31, 301-32T, 302-32T, 467-32T, 471-32T, 571-32T, latch, ES bed latch, Jewson LISJK072, LISJK100, Legge P3751, P1645, Travis Perkins P19, P20, P22 (802503), P29 (802510), P81, Union L99, Y2201, Y2294 and Yale PM246, PM320 and PM550.
Magnets in the template frame are to hold the metal templates.
Design Reg. No. 00132246-002.
Router not included.

Dimensions:
Size 320mm x 135mm x 8mm
