Features & SpecificationProduct description

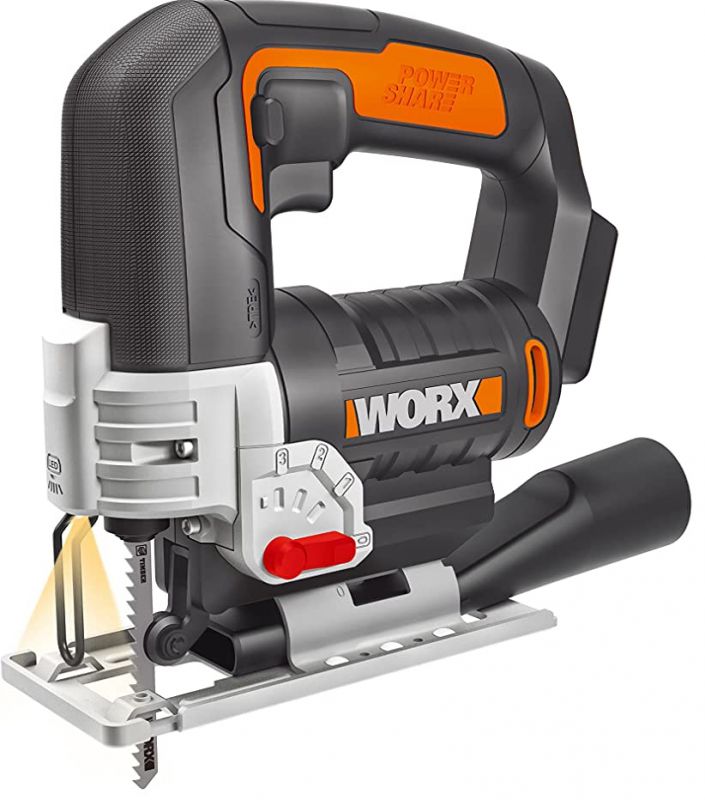

The new Worx WX543 20V cordless jigsaw features a 4-position pendulum setting that allows users to choose from high precision cuts to fast sawing progression.
Its metal base plate allows for bevel cuts with positive stops at 15°, 30° and 45°, left and right. Worx WX543 features integrated dust blower and LED light to ensure perfect scribe mark visibility in eve.
Its dust extractor connects to a vac hose for a mess-free working space.
The precision blade guide keeps the blade from bending even while cutting the most complex shape. Variable speed trigger provides accurate cuts in different materials with less chipping.
This tool is part of the expanding Worx PowerShare, one of the most versatile cordless platforms that covers power tools, lawn and garden tools and everyday life products.
PowerShare's "One Battery, Expandable Power" means the same 20V battery can be used in multiple configuration to power up 40V and 80V products.
Supplied With
Vacuum adaptor
Hex key
Wood cutting blade
Key features
Compatible with all PowerShare batteries
LED lighting to illuminate dark spots
3 pendulum settings plus straight cutting for different applications/materials
Full metal bevel base, adjustable with positive stops at 0°, 15°, 30° and 45°, left and right
Built-in blower clears the cutting line clear from dust
Precision blade guide for accuracy in tight curves
Dust extractor for connecting to a vac
Technical specifications and Manual
Battery & Charger
Battery Type Li-Ion
Battery Technology PowerShare
No. of Batteries Per Pack 0
Power Voltage Supply 20 V Max
Power Supply
Manual or Powered Powered
Performance
Bevel Angles 0-45° L&R
Max. Cut in Aluminum 18 mm
Max. Cut in PVC 50 mm
Max. Cut in Steel 8 mm
Max. Cut in Wood 80 mm
No Load Speed 0-2600 spm
Orbital Setting 4-Position
Stroke Length 24 mm
Weight & Dimensions
Product Depth 77 mm
Product Height 196 mm
Product Width 195 mm
Weight without Battery 1.7 kg
Basic Specifications
Blade Fitting Type T-Shank Fitting
Motor Type Brushed
Dust Blower YES
Switch Type Lock-Off Switch
Tool Blade Change Facility Tool-Free Blade Change
Variable Speed YES
Cordless YES
Vibration Information
Vibration Level 1.5 m/s²
