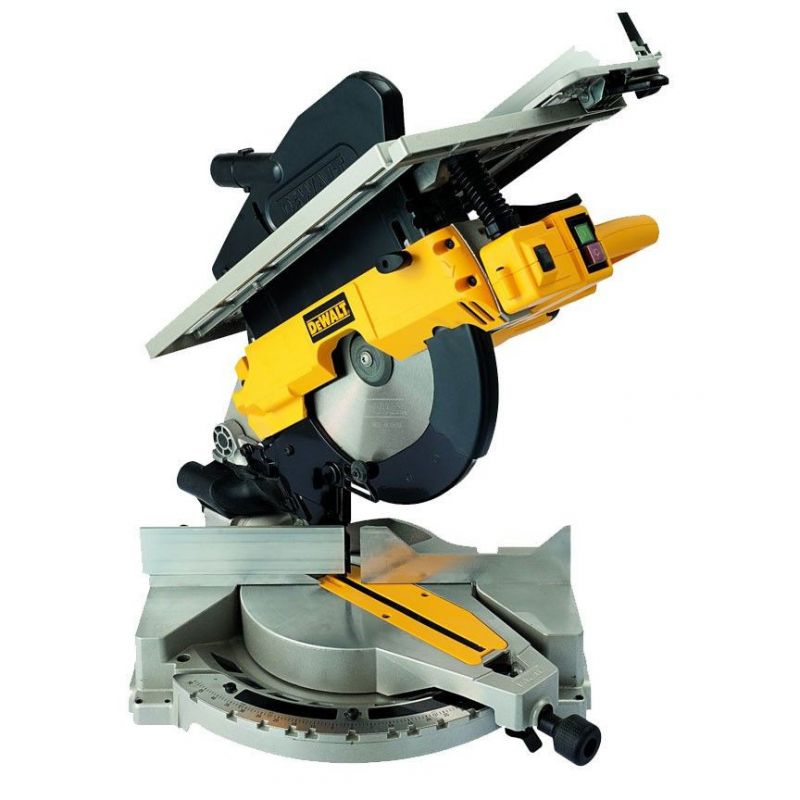

Mitre saw with powerful induction motor and integrated mechanical brake. Base and fence from die-cast rectified aluminum. 1030W output.
Combination saw with crosscut and ripping capabilities
Innovative guard design maximises safety and cutline visibility
XPS Worklight gives outstanding cut line visibility fast repeatable cuts no adjustment required giving greater
productivity
Fully adjustable Stainless steel Mitre Detents - deliver accuracy over the life of the tool
STANDARD
XPS Worklight and Cut line indicator, Saw blade, Push Stick, Blade Wrench, Rip
Fence, Table Saw Blade Guard, Allen Key, Material Clamp
SPECIFICATIONS
Power Input 1600 Watts
Power Output 1030 Watt
Blade Speed 3300 rpm
Blade Diameter 305 mm
Blade Bore 30 mm
Bevel Capacity 48 °
Mitre Capacity [right/left] 50/50 °
Max. Cutting Capacity [Sawbench position 90°/90°] 51 mm
Weight 19.5 kg
Depth 600 mm
Length x Height 500 x 485 mm
Max. Cutting Capacity at 90°/90° 180 x 40 mm
Max. Ripping Capacity [right] 1 mm
Max. Ripping Capacity [left] 1 mm
