Festool 574919 PDC 18/4 Li 5,2 Plus-SCA GB 18 Volt Li-Ion Cordless Brushless Combi Drill 2 x 5.2Ah Batteries

The multi-talented tool that makes a percussion.

QUADRIVE. With four-speed metal gearbox. For transmitting extreme power and speeds: In this way, working with screws is both powerful and effortless with 60 Nm torque in first gear. And precise drilling is almost child's play with 3800 rpm in fourth gear. No matter whether you are working with wood or metal – the QUADRIVE series stands for high endurance and is tough enough for the job. And a first-class performance is guaranteed with the FastFix interface for quickly changing to a CENTROTEC tool chuck, keyless chuck, angle chuck or socket spanner adapter without the need for tools. An impressive drive. For power and precision. In every situation.

Brushless EC-TEC motor for maximum service life and efficiency
EC-TEC motor combined with high-quality lithium-ion battery technology for up to 100% greater fastening capacity
4-speed gearbox capable of 3800 rpm for rapid, clean drilling results
Individually selectable LED lighting and battery status display
For easy fastening, drilling and impact drilling
Axial impact feature (PDC) that can be deactivated for drilling in brickwork
Universal solution for fastening operations that require high torque and for drilling large diameter holes

Achieve ideal results more quickly:

Fast, powerful screwdriving and drilling thanks to a four-speed transmission, brushless EC-TEC motor, lithium-ion battery and connectable axial impact feature.

Convenient and safe:

Quick conversion without the need for tools with the FastFix interface for drilling, screwdriving, angular drilling and angular screwdriving.

Systems get it done:

One for all – the 5.2 Ah lithium-ion battery packs in the PDC 18 can be used in all cordless devices in the same class. And vice versa.

Usage

Main applications

With connectible axial impact possible to drill in masonry/stone up to 10 mm
Up to 60 Nm torque for maximum screws 10x300 mm
Bore holes up to 50 mm with ZOBO drill bits
Screwdriving and drilling in narrow places with optional angle attachment
Thanks to FastFix interface can be retrofitted in an instant to become a powerful screwdriver or construction site screwdriver

Technical Specification:

Battery voltage - 18 V
Gears - 4
Idling speed, 1st gear/2nd gear - 0 - 400/0 - 850 min⁻¹
Idling speed, 3rd/4th gear - 0 - 1850/0 - 3800 min⁻¹
Max. number of strokes - 76000.00 min⁻¹
Drilling diameter, wood/steel - 50/13 mm
Drilling diameter in brickwork - 10.00 mm
Torque adjustment 1st/2nd gear - 1.2 - 11.5/0.8 - 7.2 Nm
Max. torque, wood/steel - 40/60 Nm
Chuck range - 1.5 - 13 mm
Li-Ion battery capacity - 5,2 Ah
Weight with Li-Ion battery - 2 kg

Noise & Vibration Values:

Impact drilling in concrete: Total vibration average, Ah - .00 m/s²
Impact drilling in concrete: Uncertainty (noise) K - 3.00 dB
Impact drilling in concrete: Uncertainty (vibration) K - 1.50 m/s²
Impact drilling in concrete: A-weighted sound pressure level, LpA - 95.00 dB(A)
Impact drilling in concrete: A-weighted sound power level, LWA - 106.00 dB(A)
Drilling in metal: Total vibration average, Ah - 3.00 m/s²
Drilling in metal: Uncertainty (noise) K - 5.00 dB
Drilling in metal: Uncertainty (vibration) K - 1.50 m/s²
Drilling in metal: A-weighted sound pressure level, LpA - 63.00 dB(A)
Drilling in metal: A-weighted sound power level, LWA - 74.00 dB(A)
Fastening: Total vibration average, Ah - 3.00 m/s²
Fastening: Uncertainty (noise) K - 3.00 dB
Fastening: Uncertainty (vibration) K - 1.50 dB(A)
Fastening: A-weighted sound pressure level, LpA - 60.00 dB(A)
Fastening: A-weighted sound power level, LWA - 71.00 dB(A)

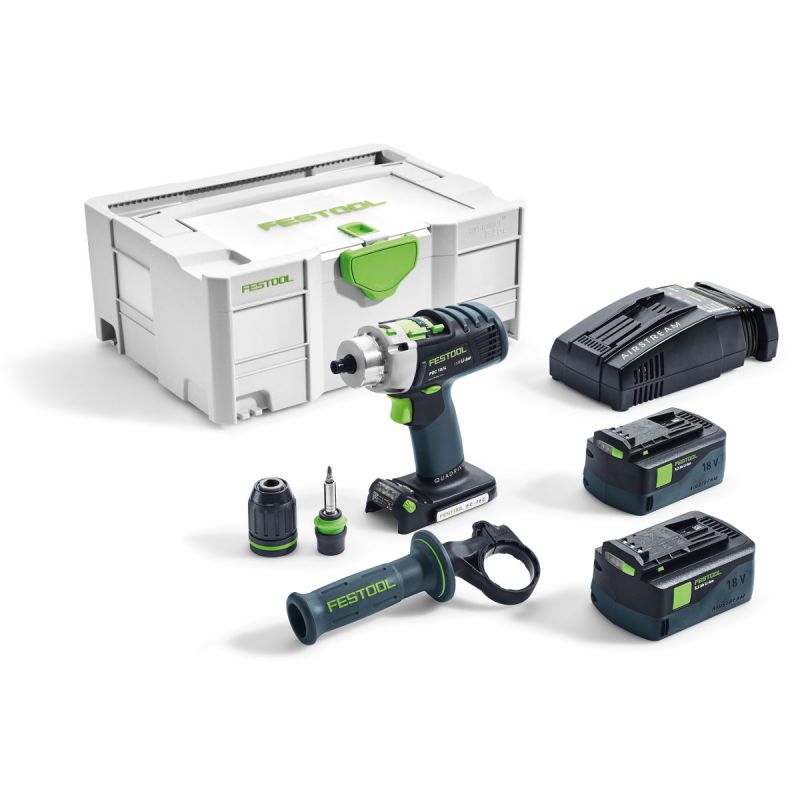

Supplied With:

2 x Airstream Battery Pack
1 x Rapid Charger
1 x Tool Chuck
1 x Centrotec Bit Holder
1 x Keyless Chuck
1 x PZ2 Bit
1 x Auxiliary Handle
