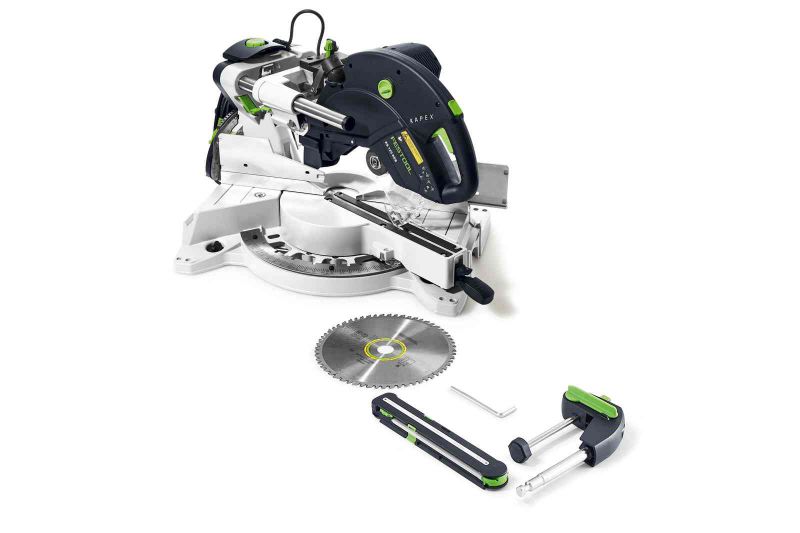

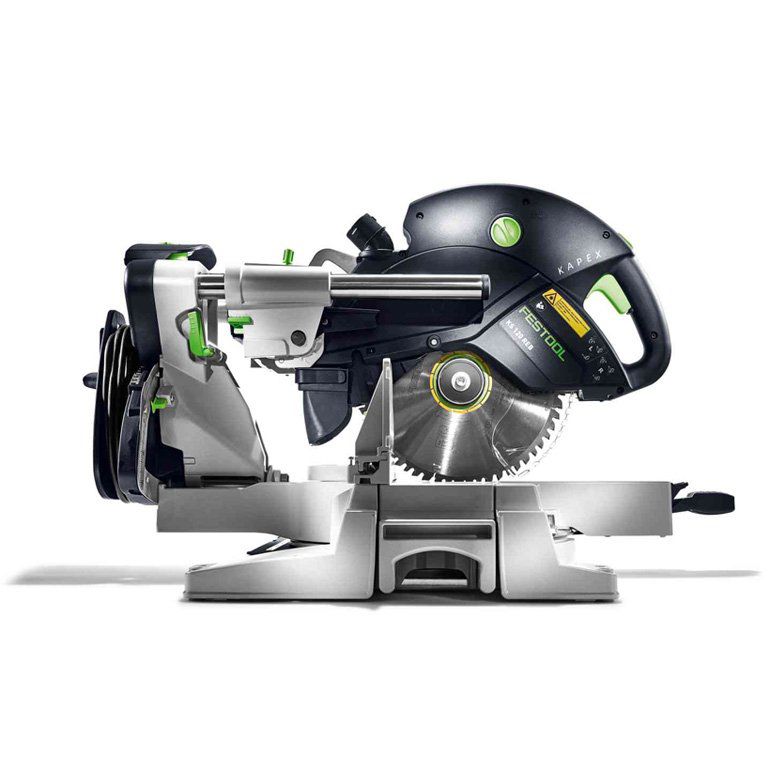

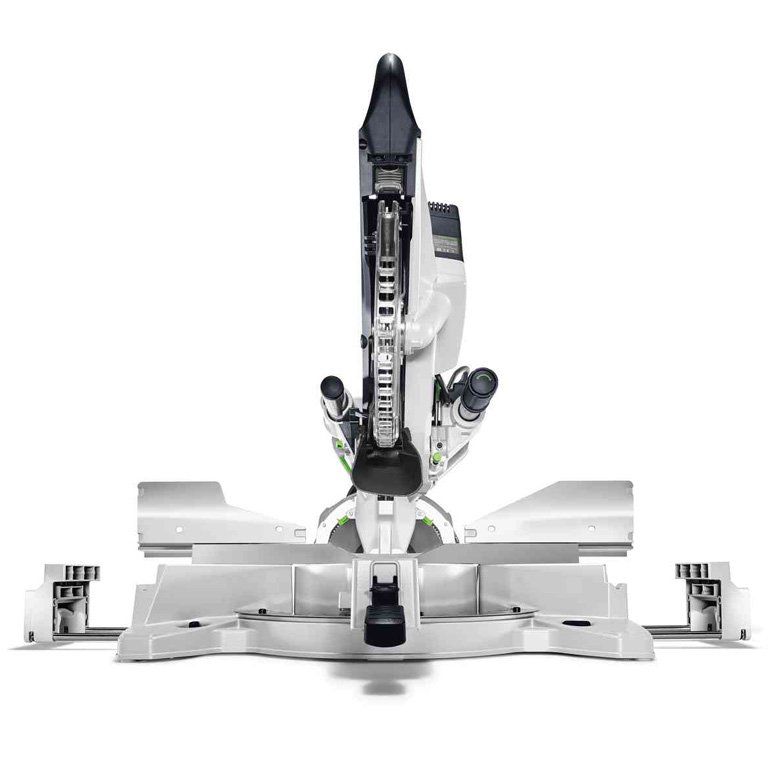

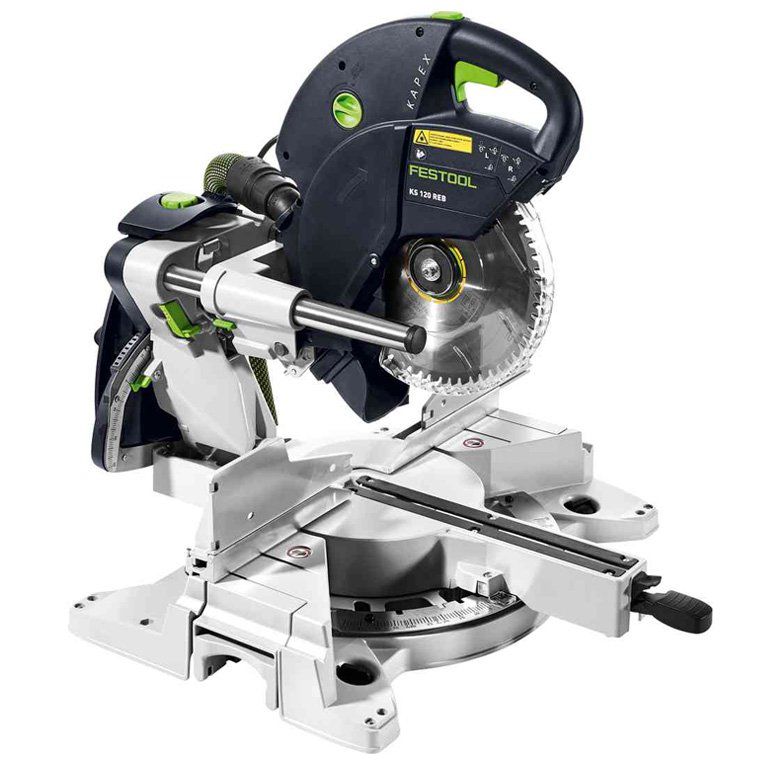

Festool 575305 110v KS120 260mm Sliding Compound Mitre Chop Saw
Functions
- Quality down to the finest detail.
- Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.Twin-column guide with two bearings for unique precision

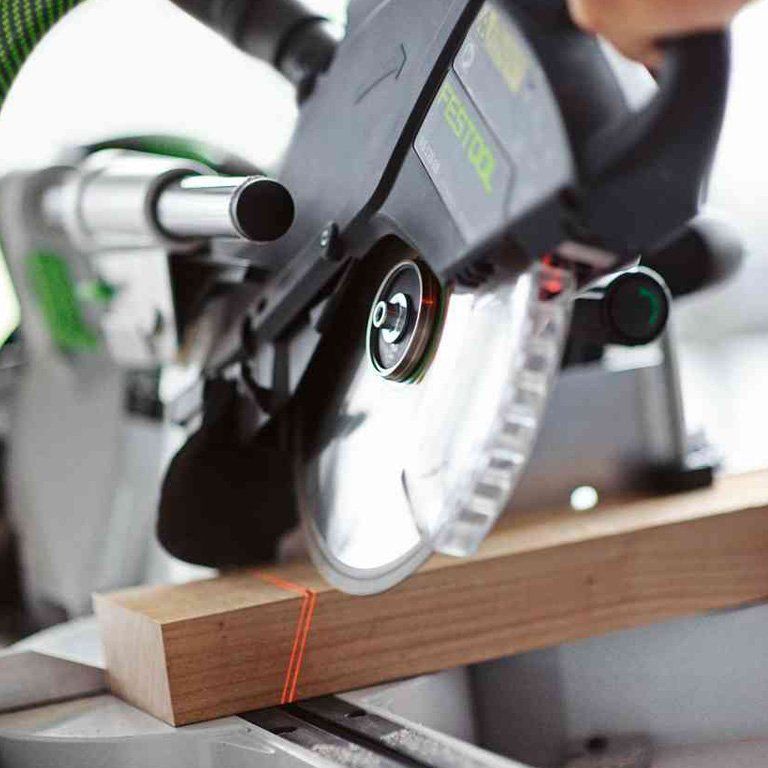

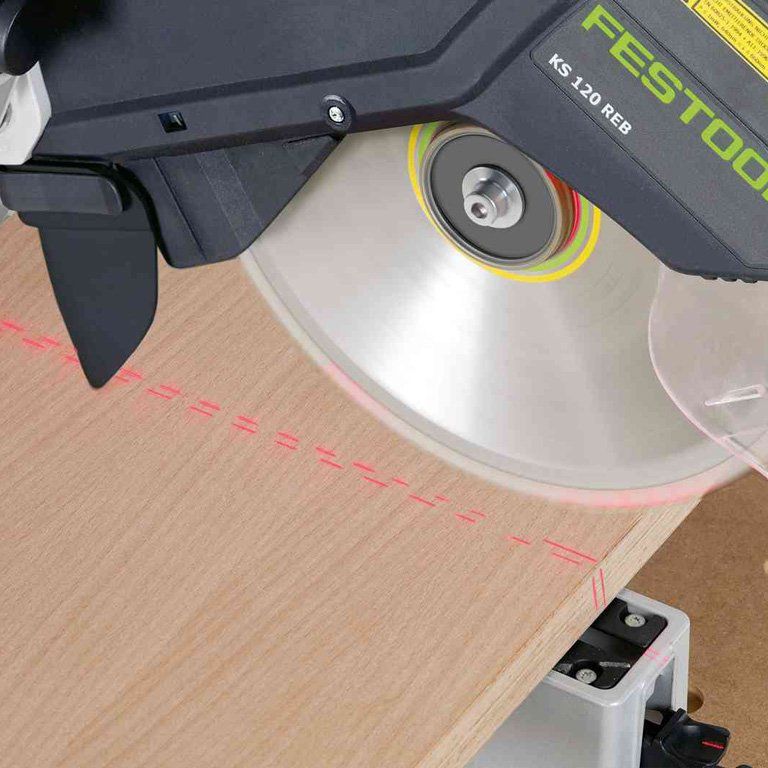

- Dual-line laser for an accurate indication of the cutting line
- Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine

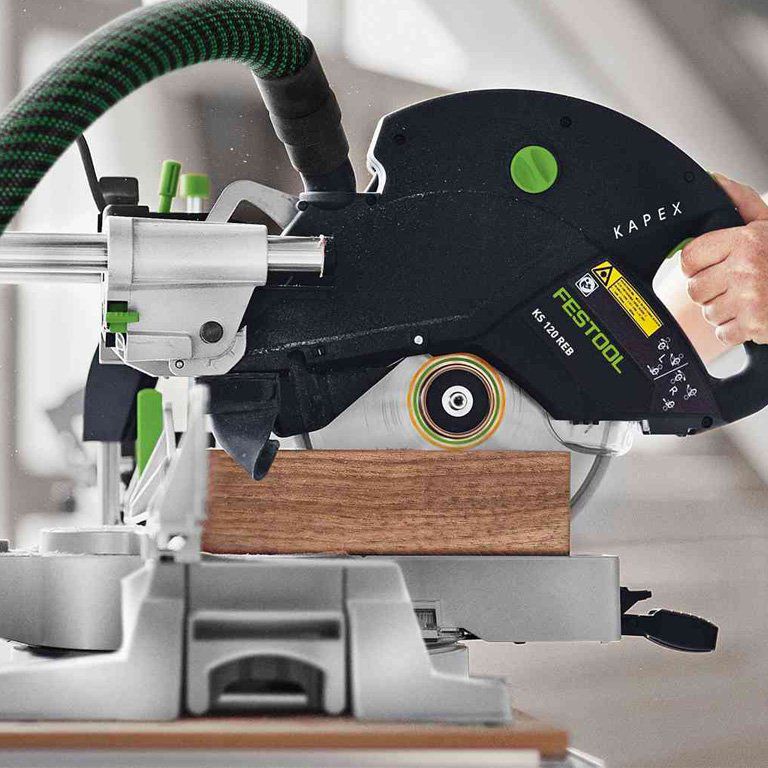

- Special cutting position for cutting depths up to 120 mm
- FastFix saw blade changing for adaptation to the working material

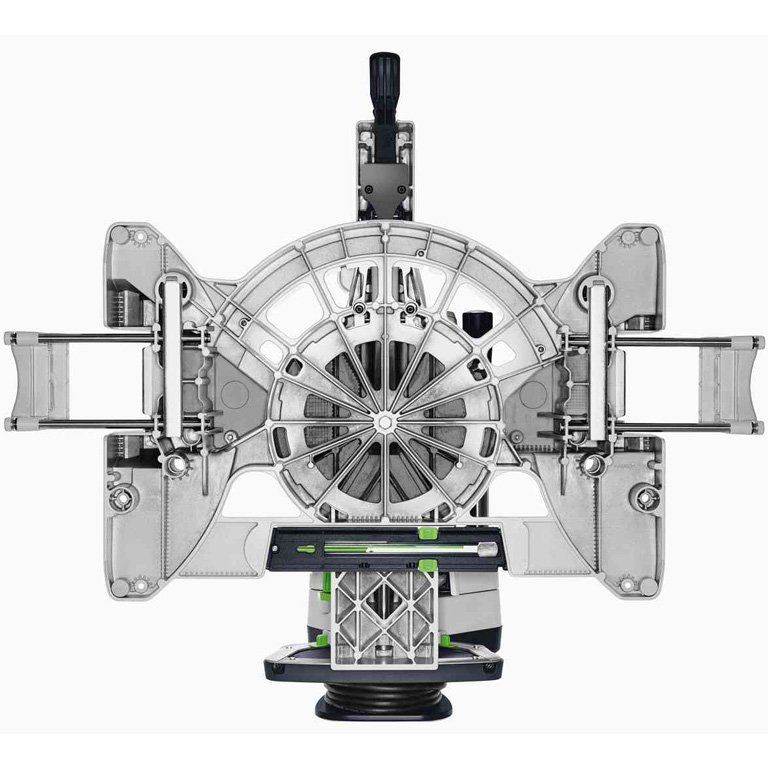

- Twin-column guide for accurate cuts

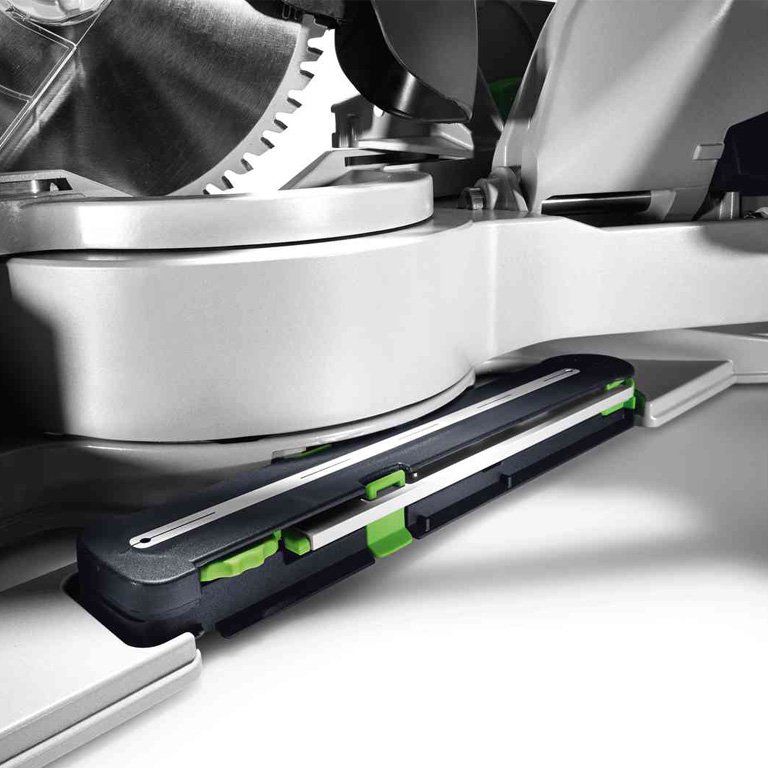

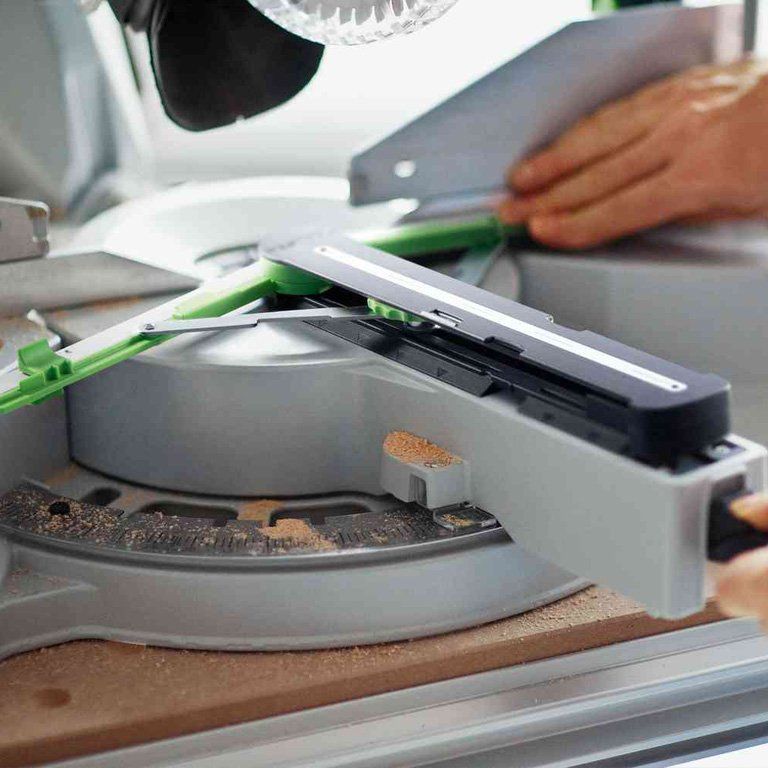

- Precision angle transfer via bevel and dual-line laser
- Compact, lightweight design for convenient transportation
- Safety brake
Product highlights
- Achieve ideal results more quickly:
Perfect seating from the very first cut thanks to exact marking of the cutting width via dual-line lasers and precision adjustment for angled cuts accurate to the millimetre
Does not take up much space and never gets in the way, thanks to its compact design with no protruding guide rods
- Innovative down to the finest detail:
No need to change saw blades and no set-up time thanks to the extra mitre position for expanding from a cutting depth of 88 mm to up to a maximum cutting depth of 120 mm
Main applications
Trimming skirting boards and cornices up to 120 mm in height – no calculations

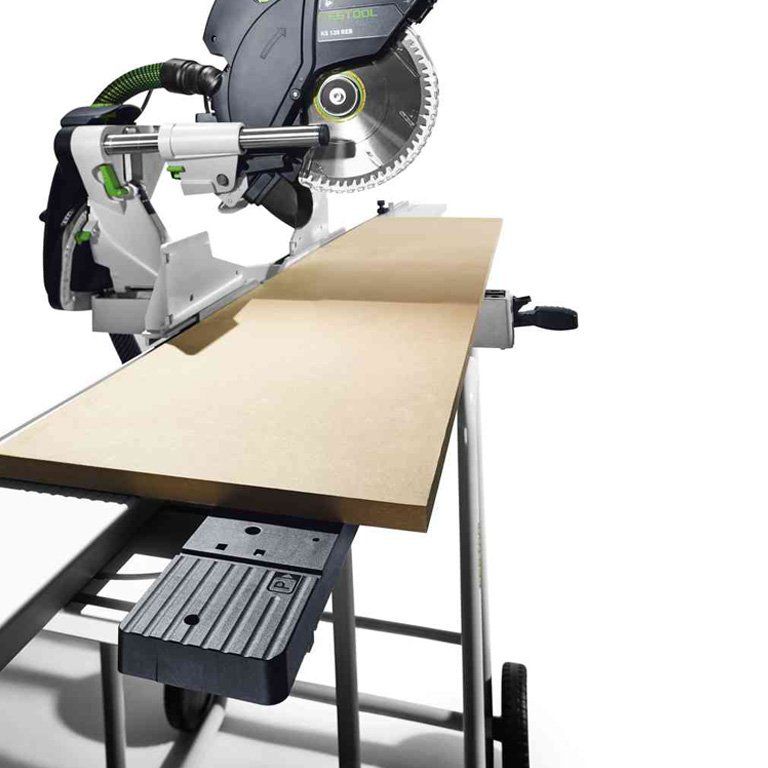

Cutting boards and panels up to 305 x 88 mm
Trimming crown mouldings up to 168 mm in their original wall position
Trimming square timber and beams up to 88 mm thick
Power consumption 1 600 W
Idle engine speed 1 400 - 3 400 min⁻¹
Saw blade diameter 260.00 mm
Cutting depth 90°/90° 305 x 88 mm
Cutting depth at 45°/90° 215 x 88 mm
Special cutting depth 90°/90° 60 x 120 mm
Crown moulding diagonal cut 45°/90° 168.00 mm
Inclination angle 47/47 °
Mitre angle 50/60 °
Dimensions (W x D x H) 713 x 500 x 470 mm
Cable length 3.50 m
Dust extraction connection diameter 27/36 mm
Special cut. depth 45°/90° (left) 40 x 120 mm
Special cutting depth 45°/90° (right) 20 x 120 mm
Cutting depth 50°/90° (left) 196 x 88 mm
Cutting depth 60°/90° (right) 152 x 88 mm
Cutting depth 45°/45° (left) 215 x 55 mm
Cutting depth 45°/45° (right) 215 x 35 mm
Crown moulding diagonal cut at 90°/90° 168.00 mm
Work height 900.00 mm
Product weight without accessories 24.30 kg
Transport weight incl. accessories 27.75 kg
Drive type Mains
