Festool 578241 100 Years Dowel Jointer DF 500 Q-Plus 100Y 230V Limited Edition GB

Festool 578241 100 Years Dowel Jointer DF 500 Q-Plus 100Y 230V Limited Edition GB

Description
Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm

Patented routing principle unique to hand-held machines for accurate work with no kickbacks

Stops that are quick and easy to adjust, for accurate results

Ergonomic shape for ease of operation in any position

Rotation-proof joint with DOMINO dowels providing maximum stability

System accessories compatible with both DOMINO jointers

We would like to thank you for 100 years together. On our anniversary, we want to celebrate the people who have been driving innovation in professional trade with us since 1925. We are proud that many of our products help to make your work a success. Thank you for your trust. We want to express our deep gratitude with our limited-edition 100th-anniversary promotion products. Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINO dowels in different sizes and a wide range of accessories for special applications. The result is extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.

DOMINO cutter D5, Additional stop, open ended spanner, WAF 8, plug it-power cable (4 m), 100 years Systainer SYS3 M 187

Product strengths
Ergonomic shape for ease of operation in any position
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Rotation-proof joint with DOMINO dowels providing maximum stability
Stops that are quick and easy to adjust, for accurate results
System accessories compatible with both DOMINO jointers
Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm

Technical data
Power consumption 420 W
Idle engine speed 25 500 min⁻¹
Depth stop for routing depth 12, 15, 20, 25, 28 mm
Max. routing depth 28 mm
DOMINO slot cutter dia. 4, 5, 6, 8, 10 mm
Routing height adjustment 5 - 30 mm
Mitre routing 0 - 90 °
Dust extraction connection diameter 27 mm
Cable length 4 m
Routing: Uncertainty (vibration) K 1.5 m/s²
Routing: Uncertainty (noise) K3 dB
Routing: Total vibration average, Ah 3 m/s²
Routing: Standards series EN 60745-2-19
Routing: A-weighted sound pressure level, LpA 84 dB(A)
Routing: A-weighted sound power level, LWA 95 dB(A)
Drive type Mains
Product weight without accessories 3.5 kg
Transport weight incl. accessories 5.9 kg

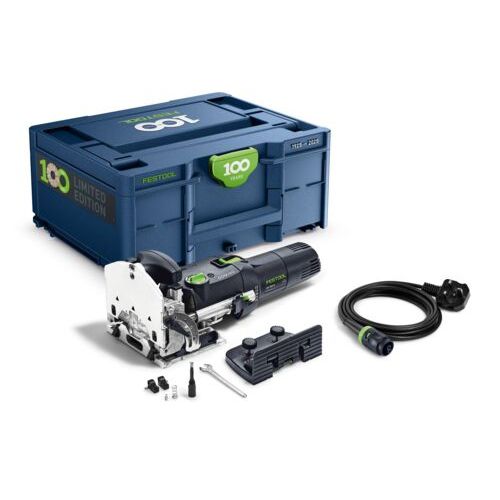

Items included
100 years Systainer SYS3 M 187
Additional stop
DOMINO cutter D5
open ended spanner, WAF 8
plug it-power cable (4 m)
