Paslode 3.1mm x 75mm Ring Shank Galv Plus Clipped Head Nails 2,200 - 2 x Fuel Cells to suit IM350+ IM350CT - 141227

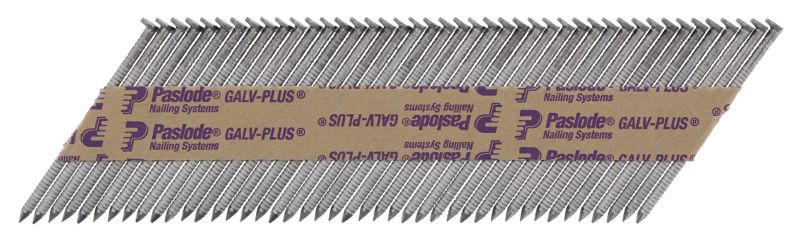

Paslode IM350+ Diamond point clipped head Nail packs with paper strip, supplied with Paslode Special Impulse gas fuel cells.

FINISH:

All Paslode nails are Chrome 6, cadmium and lead free and are available in five finishes to meet corrosion requirements.
Bright: Economy and bright nails meet the Eurocode 5 requirements for applications in service class 1 (indoor) Specification - No coating.
Galv Plus : Meet the Eurocode 5 requirements for applications in service class 1 and 2 (indoor and covered outdoor) Specification - Zn / Al alloy approx 15µm.
Electro Galv : Meet the Eurocode 5 requirements for all applications in service class 1 and 2 (indoor and covered outdoor) Specification - Zn and chromate minimum 7µm.
Hot Dipped Galv : Meet the Eurocode 5 requirements for all applications in service class 1, 2 and 3 (indoor, covered outdoor and outdoor) Specification - Zinc coating minimum 50µm
Stainless Steel : Meet the Eurocode 5 requirements for all applications in service class 1, 2 and 3 (indoor, covered outdoor and outdoor) Specification - A2 according to AISI 304, and A4 according to AISI 316.

SHANK:

Smooth Shank: The standard nail, offering high shear value and lowest withdrawal resistance. Fixing across the grain. Fixing into end grain. Clenching applications. Specification - Number of centres will vary with shank diameter.
Unilock Shank : Increases withdrawal resistance. Drives easier than ring shank fixing across the grain. Specification - The ringed parts have 24 rings per inch.
Ring Shank : Provides the highest withdrawal resistance. Fixing across the grain. Specification - RPI (Rings Per Inch) vary from 16 to 32 depending on Specification.

HEAD TYPES :

Round Head : The head area is designed to maximise resistance to the head being pulled through Specification - Head size between 2.0 and 2.5 times wire diameter according to EC5
Clipped Head : Increases number of nails per strip. The head area is designed to maximise resistance to the head being pulled through Specification - Head area corresponding to full round head area, according to EC5

To suit IM350+ and IM350CT
