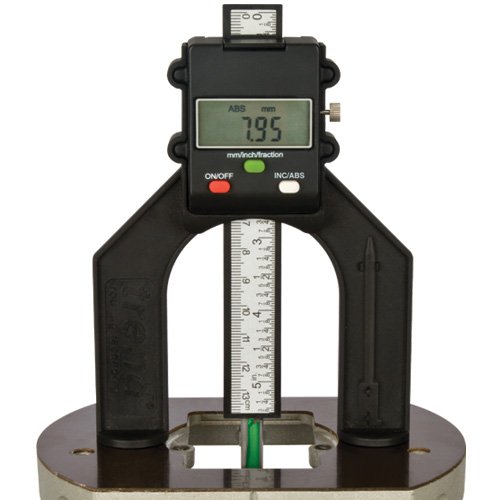

Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
For hand routers, router tables and saw benches.
LCD readout for mm, imperial and fractions with auto shut off 5 mins.
Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
Self standing with magnetic feet and flat back.
Injection plastic moulding with plastic rule.
60mm wide aperture.
Read-out has relative co-ordinate and absolute function.
Spare battery available ref. BAT/CR2032/3V.

Dimensions:
Measuring range=80 mm (3 1/8 inch)
Opening width=60 mm (2 3/8 inch)
Resolution=0.05 mm (0.002 inch)
Accuracy=+/- 0.1 mm (0.004 inch)
Repeatability=+/- 0.1 mm (0.004 inch)
Max measuring speed=1.5 m/s (60 in/s)
Weight=92g
End of life=See below for Environmental Policy link
ABS mode (Absolute)= Measuring single amounts from Zero
INC mode (Relative)=Measuring from last point
