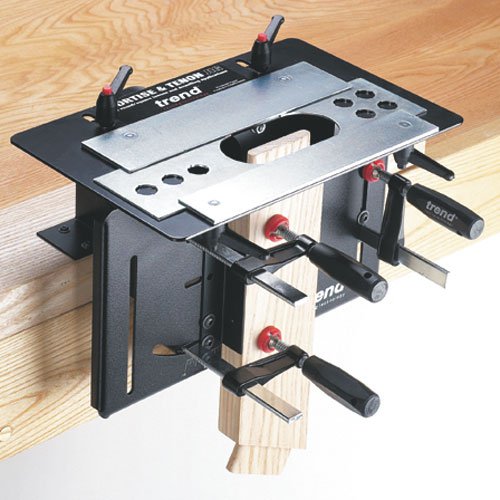

Enables mortise & tenons and dowel joints to be cut with a router to be cut with a router.
Ideal for cabinet, chair and table.
CNC precision manufactured plates and body.
One set-up for both mortise and tenon giving perfectly fitting joints.
Fully adjustable for compound angle joints up to 45 degree.
Reversible templates to produce round and square end tenons.
Templates can be used for accurate dowelling applications.
Cuts mortise & tenon sizes of 1/4 inch (6.35mm) to 5/8 inch (15.9mm).
Guide bushes are included but cutters are required.
A Unibase may be required for certain makes & models of router.
All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026). The width of the tenon is adjusted by using different guide bush diameters.
International PCT Appl No. PCT/GB02/00253.

Dimensions:
Material thickness min.=12mm
Material thickness max.=47mm
Tenon thickness min.=4.8mm
Tenon thickness max.=16mm
Tenon length max. using vertical guide+=90mm
Mortise length max. using vertical guide++=90mm
Angle tilt compound=-10 degree to 45 degrees

+ on end of 100mm wide material.
++unlimited if vertical guide removed and wood repositioned.
